Overview

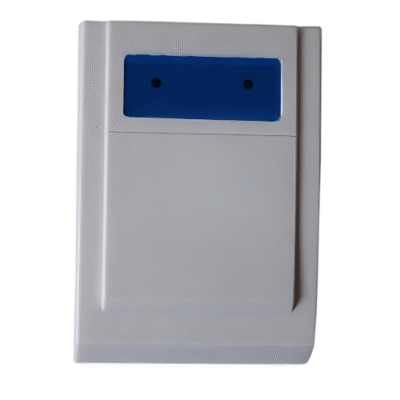

The Inventory Master TCP RFID Internet Interface Access Control Reader is based on TCP/IP, can read ID,IC cards.This readers can easily connect to network(LAN,WAN,MAN).Installation is very easy. It meets the needs of M2M.
Features
- Larger than 5cm

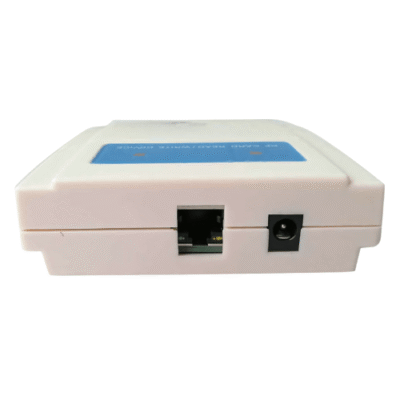

- 10/100M Ethernet interface
- Support MDI/MDIX
- Support TCP Server
- TCP Client
- UDP Server
- UDP Client and DHCP.
- Can transmission between different Gateways
- Also can use in Internet.
- Support command to drive the on-board buzzer
- Real-time transmission
- Effective distance is
- 5V DC supply, low power consumption less than 250MA.
- Working temperature -20 to 75
- Storage -40 to 85
Technical Specifications
| Frequency | 13.56Mhz |
| Protocol | ISO 14443A |
| Power Adaptor | USA type, UK type, Euro type |
| Working Temperature | -20 to 75 |
| Storage Temperature | -40 to 85 |
| Reading Range | 3-10cm |
