Overview

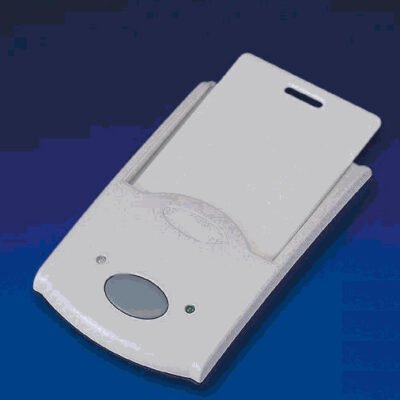

The Mifare® RFID Reader/Writer (GAO 233002) is an optimized device which can support both Mifare® Class and Mifare® PRO standard cards. With the encoder software, the reader allows you to define your own security keys and write them to the cards. This advanced Reader/Writer is widely used in applications including Access Control, Parking Systems, Prepaid Parking, Ticketing, Time and Attendance, Admission Control and POS. In addition, this Reader/Writer is waterproof and dustproof.
Application Usage
- Access Control, Parking Systems, Prepaid Parking, Ticketing, Time and Attendance, Admission Control, POS operator, etc.
Technical Specifications
| Display | None uses computer monitor to view data |
| Power requirements | 5 V DC 100 mA |
| Communications Interface | RS232, or USB |
| Baud rate | 19,200 bps N, 8, 1 |
| Frequency | 13.56 MHz. |
| Read Write Distance | 2 cm maximum |
| Memory | 32 KB. |
| Technical Certificates | CE, FCC |
| Dimensions | L 65 mm × W 100 mm × H 24.7 mm |
| Weight | to 115g. |
| Housing | ABS |
| Waterproof and dustproof | IP40 |
| Operating Temperature | -0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90 % relative |
| Multi-Detection | Yes |
