Overview

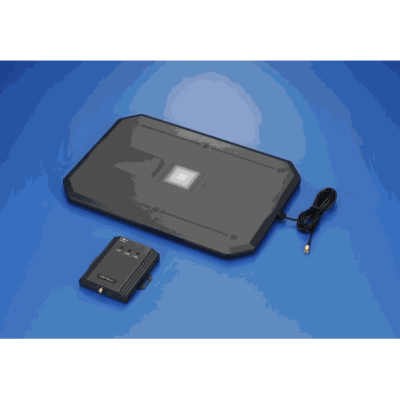

The high frequency RFID reader/writer is an advanced reader writer that can read multiple tags from a distance of up to 30 cm under ideal conditions. The small form factor of this unit provides for easy installation and is a suitable hardware solution that can be integrated into POS Systems where multiple tag reads for long lines are required.
Applications
- Smart checkout multi tag solution
- Jewelry industry
- Laundry management
- Document tracking
- Books and Video rentals
Technical Specifications
| Display | 3 Status LED’s |
| Power requirements | 12 V DC, 300 mA. |
| Communications Interface | RS232 |
| Baud rate | 19,200 bps N, 8, 1 |
| Frequency | 13.56 MHz |
| Power | 1000mW |
| Read Write Distance | 30 cm. with ISO 15693 compliant transponders |
| Technical Certificates | CE, FCC CE, FCC |
| Dimensions | L 345 mm × W 240 mm × H 20 mm |
| Housing | ABS |
| Waterproof and dustproof | – IP40 |
| Operating Temperature | -0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10 to 90 % relative |
| Multi-Detection | Yes |
| Antenna Compatibility | ANT1015A for wall or desktop mounting |
| Antenna Connection | RP-SMA 50 ohm |
| Transponder Compatibility | Tag-it @ HF, ISO 15693 Compliant Transponders |
Product Brochure
Download the brochure for this product.
