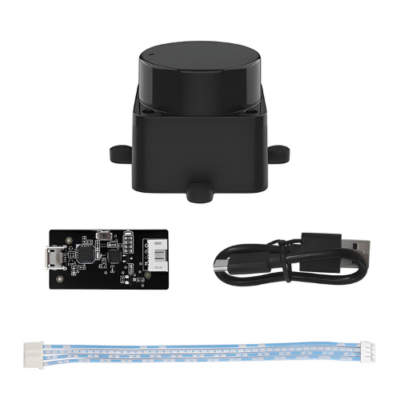

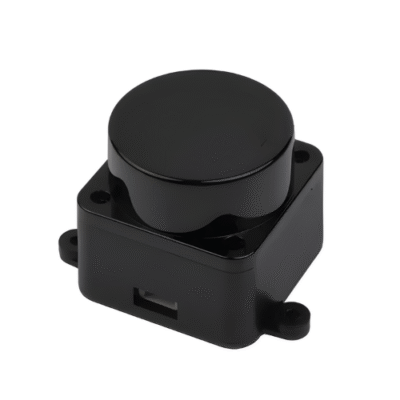

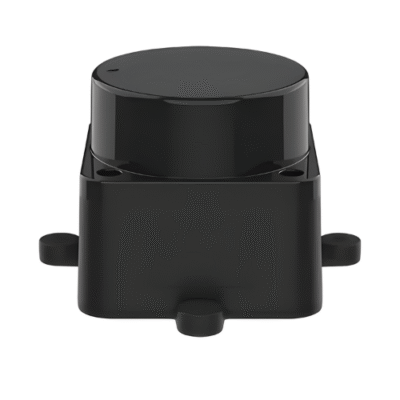

360° LiDAR sensor with 0.02-12 mm range, 15 mm resolution, and 4500 Hz frequency. Features 30 Klux ambient light resistance, compact and low power

SKU: TIMLDS-232 Category:

Technical Specifications

Ranging Distance0.787 in to 472.44 in (0.02 mm to 12.00 mm)
Ranging Average Accuracy1.77 in (45 mm)
Scanning Frequency5 Hz to 13 Hz
Scanning Angle360°
Ranging Frequency4500 Hz
Resolution0.59 in (15 mm)
Wavelength895 nm to 915 nm
Ambient Light Resistance30 Klux
Power Supply5 V
Power Consumption0.9 W
Operating Current180 Ma
Operating Temperature14°F to 104°F (-10 °C to 40 °C)
Weight47 g
Dimensions (L × W × H)2.12 in x 1.82 in x 3.31 in(54.00 mm × 46.29 mm × 34.80 mm)
