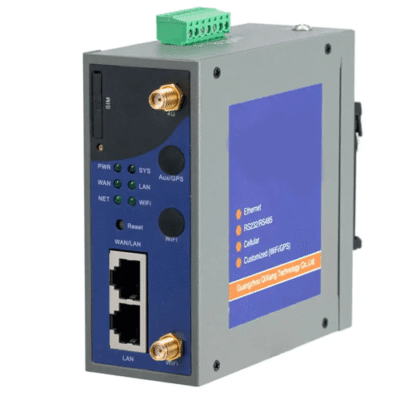

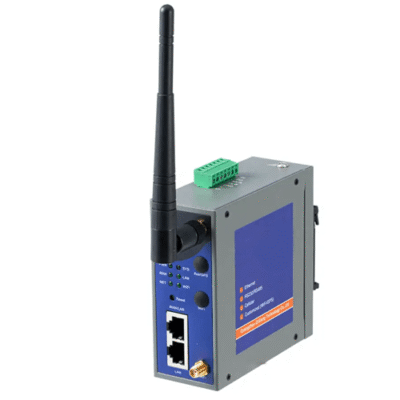

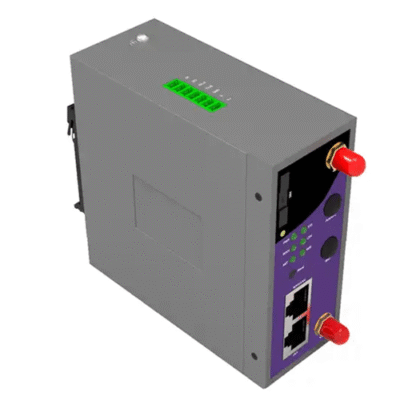

Overview
4G Wi-Fi Cellular Module with VPN, Dual Watchdogs & Cloud System is a cost-effective and powerful industrial router, which is widely used in M2M (Machine to Machine), IoT (Internet of things) and SCADA area. It provides 2 x 100 Mbps RJ 45 network ports (one of which can be multiplexed with WAN, LAN, one LAN ports), a series port (RS 232 default, can change to RS 485), and a drawer SIM, UIM card slot. It can have a serial port, Ethernet port and WIFI connected and working at the same time, providing pass-through data transmission and control functions.
Features
- Stable work for 7 x 24 hours in harsh environment
- Hardware and software dual Watchdog anti-crash design
- Full band coverage, compatible with global major operators’ network
- Secure solutions, data transmission meet financial requirement
- Support multiple VPN protocols
- ZLWL Remote Management System (Cloud Platform)
- Support devices configuration
- Upgrade and maintenance remotely
- Greatly improve the efficiency of management
Technical Specifications
| Wi-Fi | Chipset QCA 9531 |
| Standard IEEE 802.11 b, g, n, Frequency 2.4 GHz, Speed up to 150 Mbps | |
| Cellular | Module EC 25, SLM 750 |
| Frequency Band Global bands, customized | |
| FDD-LTE, TDD-LTE, HSPA, UMTS, WCDMA, EVDO, GSM, GPRS, etc. | |
| LAN | 1 x Ethernet interface (RJ 45), Auto MDI, MDIX, built-in 1.5 KV electromagnetic isolation protection |
| WAN | 1 x Ethernet interface, Auto MDI, MDIX, built-in 1.5 KV electromagnetic isolation protection, can be converted to LAN |
| Serial Port | 1 x RS 232 (Default), RS 485 (Optional) |
| Indicators | WAN, LAN, WLAN, NET four indicating lamps, the NET is a color indicator (red network signal is poor, Orange network signal is general, green network signal is good) |
| Antenna | 2 standard SMA antenna interface (WIFI and 3G, 4G), 50 Ω SMA, GPS (optional) |
| SIM, UIM | Standard drawer type user card interface, Support 1.8 V, 3 V SIM, UIM card built-in 15 KV ESD protection |
| Power | Standard 0.14 in (3.5 mm) terminal block interface, with built-in phase-reversal and over-voltage protection |
| Reset Button | Restore the router’s parameter configuration to factory values |
| CPU | Industrial-grade 32-bit MIPS processor, 650 Mhz |
| Memory | 16 MB Flash, 128 MB DDR 3 RAM |
| Standard | DC 12 V, 1 A |
| Range | 7.5 V to 32 V |
| Consumption | 2.3 W |
| Housing | Metal |

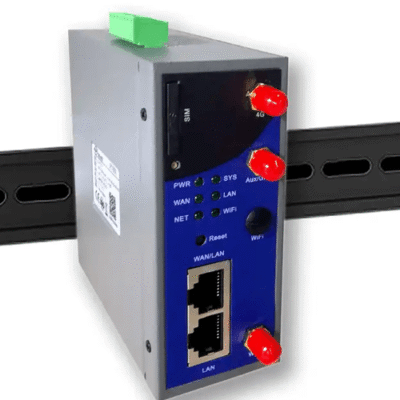

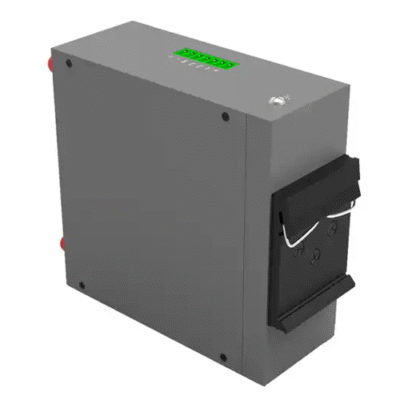

| Mounting | Desktop or wall mounting & Din-rail Mounting |
| Relative Humidity | 0% to 95% (No condensation) |
| Operating Temperature | -22 ℉ to 158 ℉ (-30 ℃ to 70 ℃) |
| Storage Temperature | -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) |
| Dimensions | 4.02 in x 3.94 in x 1.61 in (102 mm × 100 mm × 41 mm) |
| Weight | About 0.73 lb (332 g) |
