Overview

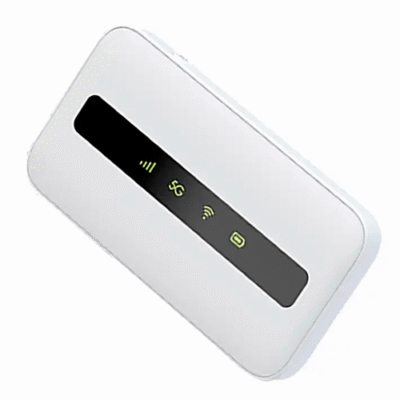

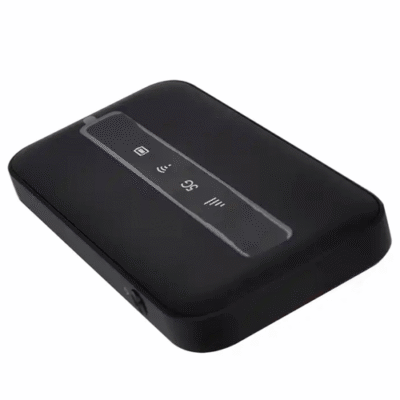

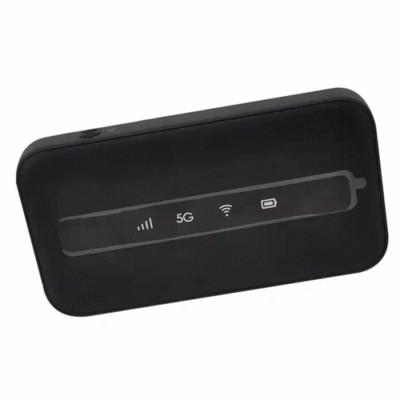

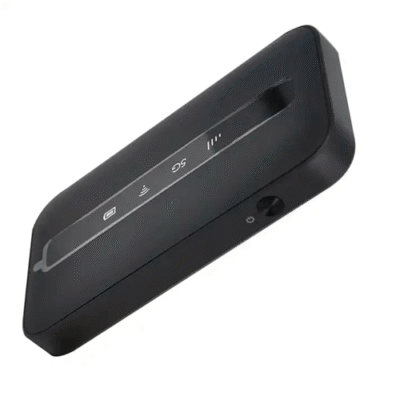

The Inventory Master 5G Mobile Router with 1.8Gbps Speed and 6-Hour Battery Life supports 5 G wireless signals into Wi-Fi 6 signals, providing high-speed stable 5 G network access for other devices.
This product adopts QUALCOMM X 55 high speed 5 G solution design, conforms to 3 GPP releases 15 standard, independent networking (SA) and non-independent networking (NSA) deployments. Covering the 5 G commercial frequency bands of the three major domestic operators, and downwards Compatible with 3 G or 4 G multiple network standards. It integrates the latest generation QUALCOMM Wi-Fi 6 chip, supports 2.4 G or 5 G working simultaneously. It supports multiple users simultaneously access, and high-speed network.
Technical Specifications
| Technical Standard | 5 G or 4 G or 3 G 802.11 a or b or g or n or ac or ax |
| Wi-Fi | 2.4 G & 5 G: WIFI 2×2 MIMO 802.11 a or b or g or n or ac or ax |
| Maximum Data Throughput | 5 G NR: 1.8 Gbps or 300 Mbps LTE CAT 18 FDD to LTE 1.2 Gbps or 150 Mbps |
| Receive Diversity | Support |
| MIMO | Support DL 4 x 4 MIMO |
| Chipset | Qualcomm (BB); SD x 55 QCA 6391 (Wi-Fi) |
| Memory | 4 Gb + 4 Gb |
| USB Charging | Type C |
| USIM or SIM | 4 FF SIM card Support SIM or USIM or UIM, standard 6 PIN SIM card interface, support 3 V SIM card and 1.8 V SIM card: internal |
| Battery | Li ion Battery 3600 mah |
| Charging time | about 3 H |
| Working time | about 6 H |
| LED | Signal Strength, 5 G Indication, WIFI Indication, Power indication |
| USB | Type C, Charge & internet |
| Antenna | 5 G + 4 G: 6 antennas Wi-Fi: 2 antennas |
| Buttons | POWER, Reset |
| ESD | ESD Protection circuit, Contact ± 8 KV, Air ± 10 KV |
| Operating Temperature | 14 °F to 113 °F (-10 °C to 45 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Humidity | 5% to 95% |
