915 MHz Directional RFID Antenna with 15 dBi Gain, 902 MHz to 928 MHz, 120° Beam Width – The Inventory Master

High-gain, 915 MHz, 902 MHz to 928 MHz directional RFID antenna with optimized dimensions, vertical or horizontal placement, and full-day operation.

SKU: TIMANT-248 Category:

Features

  • High gain
  • Full day working
  • Optimized dimension
  • Vertical or horizontal



Technical Specifications

Frequency Range902 MHz to 928 MHz
PolarizationVertical
Gain15 dBi
Half Power Beam WidthH 120° V 7°
Front To Back Ratio≥18 dB
Input Impedance50 Ω
VSWR≤ 1.5
Side Lobe Suppression For First Side Lobe Above Horizon15 dB
Maximum Input Power400 W
Lightning ProtectionDC Ground
Input Connector TypeN Female
Radome MaterialUPVC
Radome ColorGray
Mechanical Tilt0° to 10°
Rated Wind Velocity60 m per s
Waterproof StandardIP67

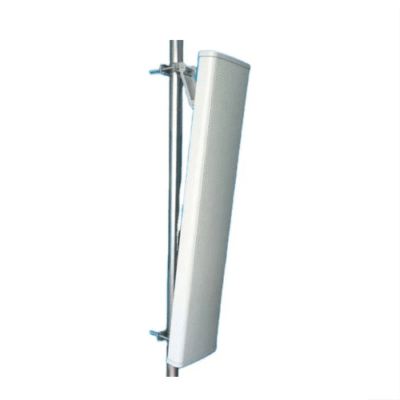

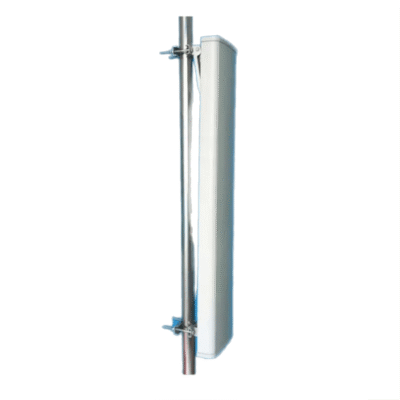

Mounting WayPole holding
Operating Temperature-40 °F to 140 °F (- 40 °C to 60 °C)
Mounting Hardware1.4 in to 3.5 in (35 mm to 90 mm)
Dimensions Mm86.6 in x 11.02 in x 4.9 in (2200 mm x 280 mm x 125 mm)
Antenna Weight31.9 lb. (14.5 kg)
