Overview

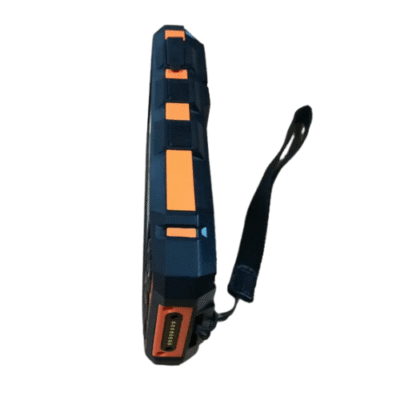

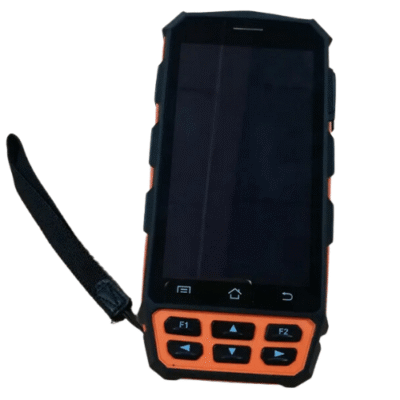

The Inventory Master Android barcode scanner RFID reader supports Android operating system, optional low frequency, high-frequency, ultra-high frequency RFID function. According to ergonomic design, external antenna, the appearance of small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in a variety of environmental conditions. Mainly used in logistics, asset management, warehousing management, library management, production management, ticket management and other fields.
Features
- Compact and portable, physical and virtual keyboards
- Android 5.1 system
- RFID frequency optional
- Diversified wireless communication
- Powerful bar code scanning function
- Standard WIFI, BT, expansion interface
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | ISO18000-6C |
| CPU | Quad-core 64-bit Cortex-A53 |
| Operating System | Android 5.1.1 |
| Bluetooth | Bluetooth 4.0 |
| Communication Interface | USB 2.0, 3.5 plug charging interface |
| Reading Distance | (2 m) 6.5 ft (Ranges depend on tags and environment), Built-in Antenna |
| Display | (12.7 cm) 5 in IPS HD screen, |
| Touch Screen | Industrial multi-touch capacitive screen |
| Expansion Slot | 1 SIM, 2 PSAM 1 MicroSD (TF) |
| Audio | Voice broadcast |
| Indicator Light | Network indicator, charging indicator |
| Key | Scan key, function key |
| Camera | 8-megapixel rear camera with flash and autofocus function |
| Flashlight | Low power LED lighting, used in emergency |
| CPU | Quad-core 64-bit Cortex-A53 |
| Memory | RAM: 2 GB, ROM: 16 GB |
| Expansion | Supports up to 32GMicro SD card |
| Charging Time | < 4.5 hrs |
| Reading Distance | 0 ft to 22.9 ft (0 m to 7 m) |
| Anti-Collision | 200 pcs per s |
| Functions | Enrollment, compare and deletion etc |
| Sensor Type | Inductive Capacitance |
| Resolution | 500 DPI |
| Storage Memory | 1000 Fingerprints |
| Battery Capacity | Li-polm,4500 mAh |
| 1D Barcode | Undecoded and Decoded Scan Mode: single-line Interface: Undecoded: 10-pin ZIF connector, Decoded: 12-pin ZIP connector RS-232(TTL) Scanning Angle: 47 ± 3° (default) or 35 ± 3° (BWR) Scan Rate: 104 scans per s ± 12 scans per s |
| Barcode | 2D Barcode: PDF417, QR Code (Model 1/2), DataMatrix (ECC200.ECC000,050080.100.140), Aztec, Maxiccdeetc 1D Barcode: Code128.EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codaba, China post 25, interteaved 2 of 5, ISBN/ISSN. Code93etc |
| UHF | ETSI: 865 MHz to 868 MHz OR FCC: 902 MHz to 928 MHz Working protocol: ISO18000-6C Reading distance: 0 ft to 22.9 ft (0 m to 7 m) (Ranges depend on tags and environment) Anti-collision (optional): 200 pcs per s Output power: 0 dBm to 30 dBm or 2 W |
| HF | Working frequency: 13.56 MHz Working protocol: ISO14443A & ISO15693 Reading distance: 0 ft to 22.9 ft (0 m to 7 cm) (Ranges depend on tags and environment) |
| LF | 125 kHz or 134.2 kHz |
| Operating Temperature | -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃) |
| Storage Temperature | -4 ℉ to 158 ℉ (-20 ℃ to 70 ℃) |
| Size | 6.6 in × 3.3 in ×0.9 in (170 mm × 85 mm × 23 mm) |
| Weight | 13.4 oz (380 g) |
