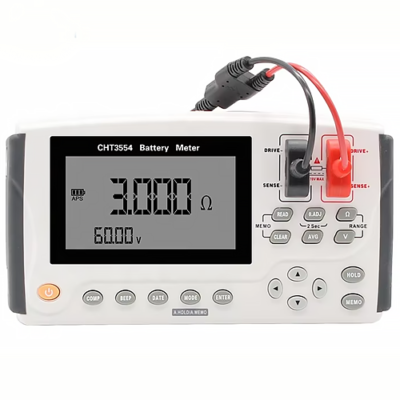

Features
- USB Interface Support
- AC/DC Resistance & Voltage
- Mobile Battery Testing
- Short Circuit Correction
- Internal Data Storage
- Comparator Sorting (PASS/FAIL)
- High-Resolution Display
- Lithium Battery Powered
Technical Specifications
| Interface | USB Interface |
| Parameters | AC resistance, DC voltage |
| Item | Mobile Phone Battery Testing |
| Correction | Short Circuit Correction for Each Range |
| Accessories | Test probe, zero board, Lithium battery, DC power adapter, Temperature probe, Mini-USB cable |
| Trigger | Internal / Auto Trigger |
| Screen Size | 4.3 inches LCD display |
| Basic Accuracy | Resistance: ± 1 % Voltage: ± 0.1 % |
| Comparator | 200 set WARNING / FAIL / PASS sorting |
| Battery | 12 V / 1700 Ah Lithium Battery |
| Usage | 18650 Battery Cells Testing |
| Internal Data Storage | Store up to 2400 test data |
| Signal Source | AC 1 kHz, Test current: < 150 mA |
| Resolution | R: 0.0011 yard (0.001 m); V: 1 mV |
| Power Supply | 2 V / 1700 mAh lithium battery, AA (LR6) Alkaline Batteries x 8 |
| Range | Resistance: 3 mΩ / 30 mΩ/ 300 mΩ / 3 Ω |
| Measuring Range | R: 0.0011 yards to 3.39 yards (0.001 m to 3.1 m); V: 1 V to 60 V |
| The Minimum Resolution | Resistance: 1 μΩ, Voltage: 1 mV |
| The Maximum Reading | Resistance: 31,000 Voltage: 60,000 |
| Input Impedance | 32 kΩ |
| Dimensions | 8.19 in × 2.07 in × 4.72 in (20.8 cm x 5.25 cm x 12.0 cm) |
| Weight | 1.78 pound (0.81 kg) |
