Overview

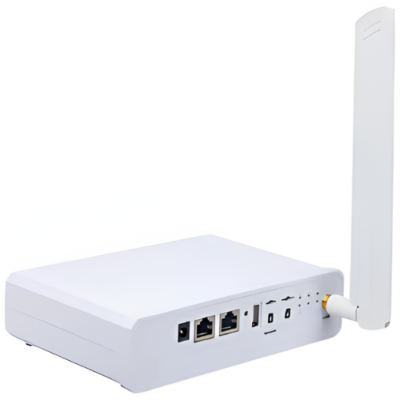

The Inventory Master advanced LoRaWAN Gateway is an outdoor gateway based on the low-power wide area network LoRaWAN protocol, which can connect to standard LoRaWAN terminals and perform two-way communication. The gateway connects the gateway device to the NS (network server) through standard Ethernet and supports network and firewall functions. At the same time, it supports 2.4G Wi-Fi and LTE (optional) for uplink communication connection. It supports the MQTT Bridge function and can be connected to a third-party platform through MQTT Integration.
Features
- LoRa supports 8RX 1TX channels
- Support 2.4G Wi-Fi
- 100M base-T Ethernet supporting PoE
- Support Ethernet, Wi-Fi or LTE uplink multi-link backup
- Open WRT software program that supports LoRaWAN and network configuration
- Built-in radiator for heat dissipation
- Access to private or public (TTN) LoRa network server
- Support TF card storage method
- Suitable for use at indoor ambient temperature
- Support optional LTE 4G function support
Technical Specifications
| Processor | MT7 628, DDR2RAM 128 MB |
| Wi-Fi Function | Frequency: 2.400 GHz to 2.4835 GHz (802.11 b/g/n) |
| RX sensitivity: -95 dBm (minimum), TX power: 20 dBm (maximum) | |
| Operating channel: 2.4 GHz: 1 to 13 | |
| LoRa Function | SX1301 Mini PCIe card 8 lanes |
| RX sensitivity: -142 dBm (minimum), TX power: 27 dBm (maximum) | |
| Frequency: EU 433, CN 470, EU 868, US 915, AS 923, AU 915, KR 920, IN 865 | |
| Mobile Cellular Network | Support optional Quectel EG95-E/EG95-NA: LTE CAT 4 network, not supported by default |
| Power Supply | DC 12V to 1A |
| Power Consumption | 12 W (typical value) |
| Ethernet | RJ 45(10/100 M) |
| Console | RJ45 (RS232) |
