Overview

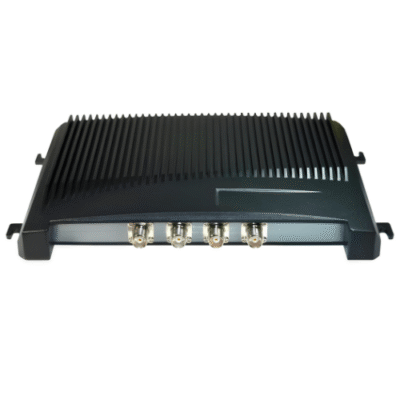

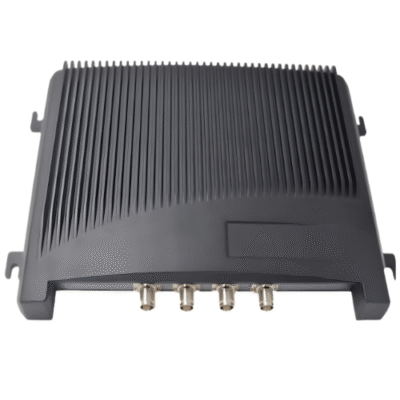

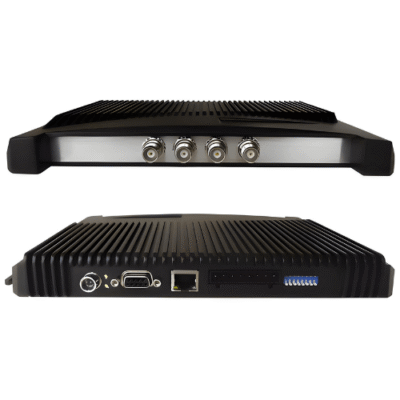

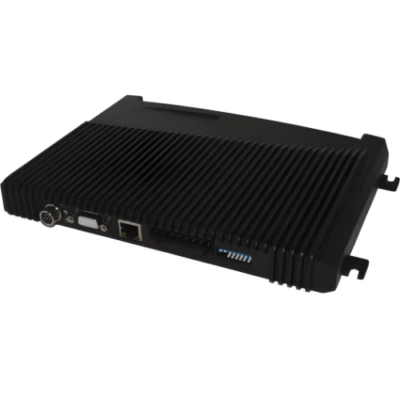

The Inventory Master 2 Port or 4 Port RFID Readers can connect with 1 to 4 (7 dBi,9 dBi,12 dBi) antennas. It can be applied for multi-point reading environment solution.
Features
- Special anti-collision algorithm
- High efficiency of multi-tag identification capability
- Compatible with ISO18000-6C (EPC-GEN2) protocol
- Read or Write tag capability
- Read distance 16.40 ft to 39.37 ft (5 m to 12 m)
- Supports multi tags identification
- Single tag read and write, lock and Kill tag etc.
Technical Specifications
| Non-condensing Enclosure | IP-40 |
| Reader Chip | Indy R2000 |
| Frequency Range | 902 MHz to 928 MHz, 865 MHz to 868 MHz |
| Protocol | EPC Class 1 Gen 2 |
| Read Distance | 16.40 ft to 39.37 ft (5 m to 12 m) |
| Operation Mode | FHSS or Fixed frequency (set by software) |
| Work Mode | Command, Auto |
| RF Power Control | 20 dBm to 30 dBm |
| Communication Interface | RS232 or RS485 or TCP or IP(RJ45) |
| Power Supply | External 110 V to 220 V AC, DC + 9 V 3 A Power Adapter |
| Antenna Connection | 4 Antenna SMA (female) Connector |
| Reading Clue | Buzzer and LED |
| Humidity | 10 % to 95 % |
| Operating Temp | 14 °F to 131 °F (-10 °C to 55 °C) |
| Storage Temp | -4 °F to 185 °F (-20 °C to 85 °C) |
| Weight | 3.31 lb (1.5 KG) |
