Overview

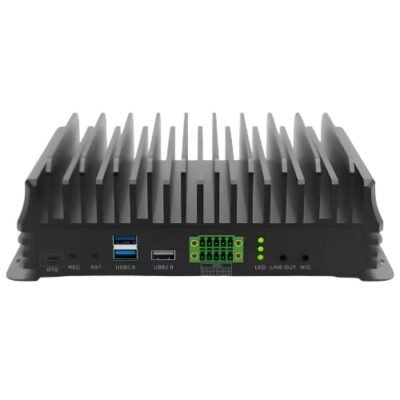

The Inventory Master AI Embedded Computer is based on Jetson AGX Orin. It has a high-performance, compact AI box with built-in Jetson AGX Orin platform, and adapts to the industrial environment with wide pressure and wide temperature. This device has multiple IO interfaces such as LAN, DIO, COM, USB 3.2 and USB type-C with multi-function expansion. The Inventory Master AI Embedded Computer also supports M.2 B key, M.2 E key, SD, PCIe x16 (optional), Linux, Ubuntu 20.04 LTS. The built-in device has device management software that supports rapid AI management at scale hash rate up to 275 TOPS.
Technical Specifications
| Processor | Arm Cortex A78AE v8.2 |
| Core Number | 8 |
| Memory | 32 GB |
| Flash | 64 GB eMMC |
| GPU | 1792 CUDA cores and 56 Tensor cores |
| AI Performance Reference | Up to 200 TOPs (INT8) |
| TDP | 15W to 40W |
| Controller | 3 x I225-LM |
| Connector | RJ45 x 3 |
| Speed | Up to 2.5 GbE |
| HDMI | 1 |
| Max. Resolution | 3840 x 2160 at 60Hz |
| USB | 4 x USB 3.2 Type A, 1 x USB 3.2 Type C, 2 x internal USB 2.0 for security dongle |
| COM Port | 4 (4 x RS232 or 422 or 485) |
| Digital I/O | 16-bit DIO |
| Audio | 1 x Line-out |
| OTG USB | 1 x Micro USB (for system recovery only) |
| CANBus | 2 |
| Camera Input | 2 x 2-LANE MIPI-CS (internal) |
| M.2 | 1 x B key (Type: 2280, 3042) + 1 x E Key (Type: 2230) |
| SD Socket | 1 SD card slot |
| PCI Express x 16 | Optional |
| Power Type | AT or ATX |
| Input Voltage | 9 to 36 VDC |
| Vibration | 3 Grms at 5 to 500 Hz, random, 1 hour per axis |
| Operating System | Linux Ubuntu 20.04 |
| SUSI | Yes |
| Safety Certifications | UL, CB |
| EMC | CE, FCC Class B, CCC, BSMI |
