Overview

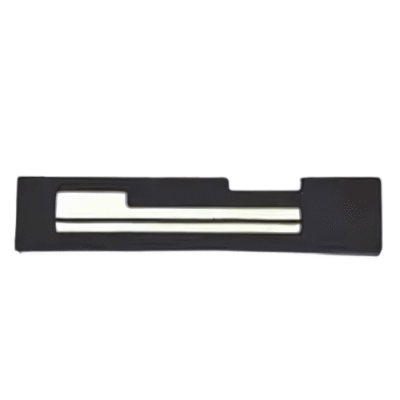

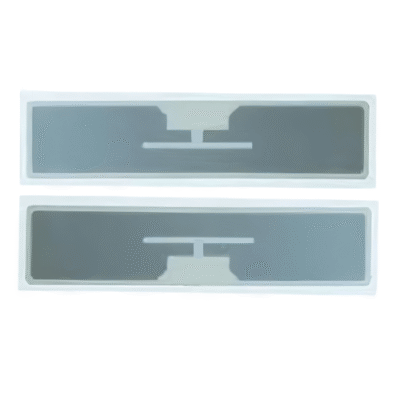

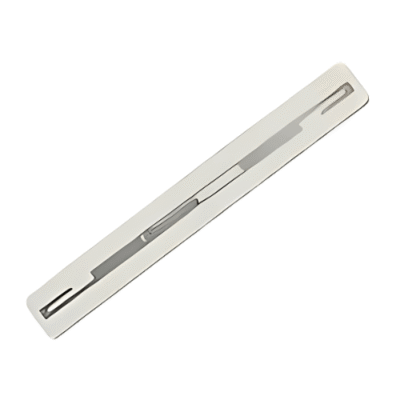

The Inventory Master Anti Liquid RFID Tag for Medical Bottles and Wine Bottles is specially designed for anti-liquid application, such as water, drink, alcohol, cosmetics, perfume, blood bag, beverages, alcohol, drugs, etc. It is complaint with EPC C1G2 (ISO18000-6C) standard. It is a Chinese manufacturer with over 20 years of experience in the RFID industry, specializing in R&D of RFID inlays and tags. Our RFID labels have been exported to the world. To explore more about our products, please feel free to contact us.
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO18000-6C, EPC Class1 Gen2 |
| Material | Paper or PET or PVC on the surface PET base + Aluminum foil antenna |
| Chip | U8, U9 |
| EPC Memory | 128 bits or 96 bits |
| TID Memory | 96 bits |
| Reading Range | 9.8 ft to 16 ft (3 m to 5 m) (Related to the chip types & reader) |
| Operating Type | Passive with high reading & writing sensitivity |
| Working Mode | Read & Write For 100000 times |
| Application | Perfume Management Test Lab Management Medical samples Management Sunglasses Management healthcare, medical, chemical industrial solution |
| Working Temp | -40 °F to 185 °F (-40 °C to +85 °C) |
| Size | 2.9 in x 0.8 in (73 mm x 20 mm) |
