Overview

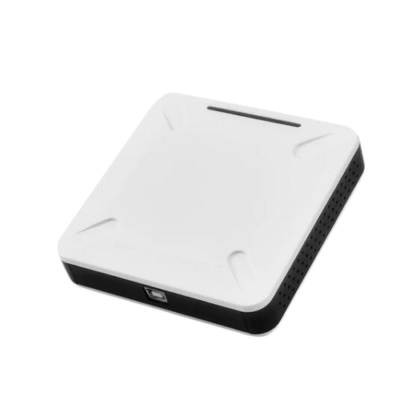

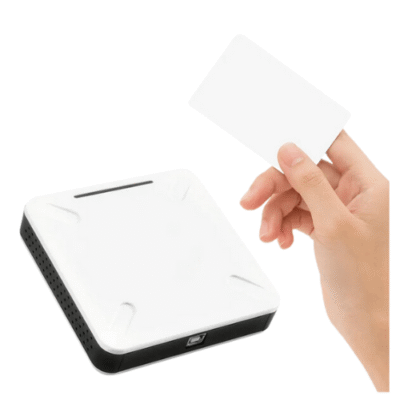

The Inventory Master Keyboard Emulation RFID Reader Black USB Color Data adopts low power consumption, high cost-effective reader module design, with long reading distance and high recognition speed Fast, many types of interfaces and easy installation. Can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical system, cold chain management, temperature Monitoring, power monitoring, anti- counterfeiting systems and production process control and other applications.
Technical Specifications
| Working Frequency | 860 MHz to 960 MHz |
| Protocol | ISO18000-6C |
| Output Power | 26 dBm ±1 dBm (MAX) |
| Power Output Step | 1 dBm |
| Antenna Polarization | circular polarization |
| Antenna Gain | 2 dBi |
| Reading Distance | 3.2 ft (1 m) |
| Identify Distance | > 3.9 in (10 cm) (label-and environment related) |
| UART Serial Port (Custom-Made) | 3.3 VTTL level |
| USB Interface (Customized) | Micro-USB |
| Micro-USB | Micro-USB |
| Working Voltage | D C 5.0 V (+3.7 V to +5.5 V) <50 mA per DC |
| Normal Current | 5 V |
| Maximum Current | < 200 mA or DC 5 V |
| Material | ABS |
| Working Temperature | -4 °F to 140 °F (-20 ℃ to +60 ℃) |
| Storage Temperature | -40 °F to 176 °F (-40 ℃ to +80 ℃) |
| Working Humidity | 5 % to 95 % (No condensation) |
| Overall Dimensions (Rx D) | 5.197 in x 3.937 in x 1.260 in (132 mm x 100 mm x 32 mm) |
| Weight | 5.64 oz (160 g) |
