Overview

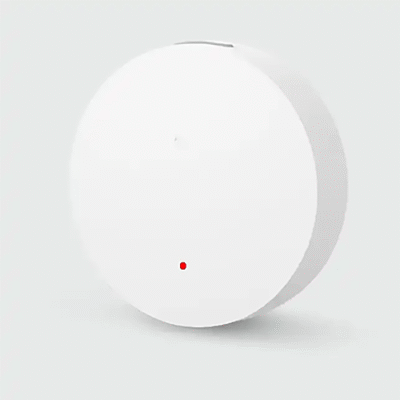

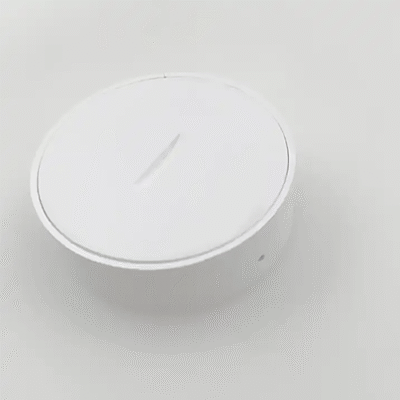

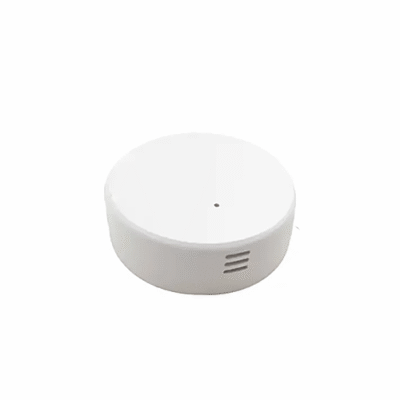

The Inventory Master wireless temperature sensor bluetooth beacon is a new generation sensor technology that is based on iBeacon. This product can collect temperature and humidity data and send collected data to phone or gateway via Beacon broadcasting.
Features
- Bluetooth 5.0 BLE
- Embedded antenna for 50 m range in open air
- Automatic power saving mode
- FCC, CE, ROSH certified
- Precise signal strength display
- Includes temperature and humidity testing
- Configurable sampling frequency
Technical Specifications
| Bluetooth Specification | BLE 5.0 |
| Spread Spectrum Method | FHSS |
| Voltage | 2.7 V to 3.3 V |
| Working Frequency | ISM frequency 2.400 GHz to 2.483 GHz |
| Transmitting Power | 0 dBm |
| Transmitting Distance | 30 m |
| Receiving Sensitivity | <96 dBm at <0.1% BER |
| Connecting Standby Power | 0.2 mA |
| Antenna Standard | 2.4 G, 50 ohms |
| Safety Standard | AES 128 bit |
| Relative Humidity | 0% to 100% |
| Temperature Measure Accuracy | 59 °F to 104 °F (15 °C to 40 °C) deviation is ±0.5 -40 °F to 185 °F (-40 °C to 85 °C) deviation is ±1 |
| Temperature Measure Range | -40 °F to 185 °F (-40 °C to 85 °C) |
| Store Temperature | -67 °F to 257 °F (-55 °C to 125 °C) |
