Overview

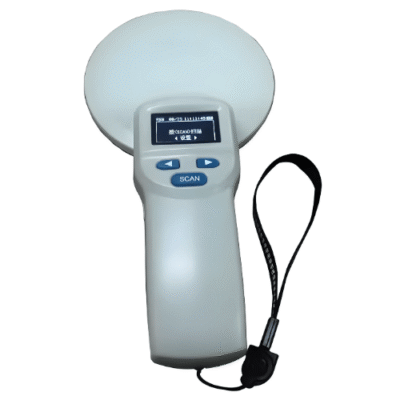

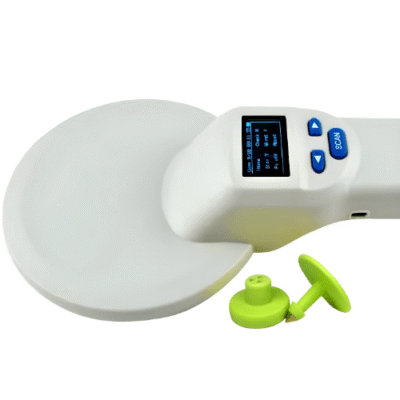

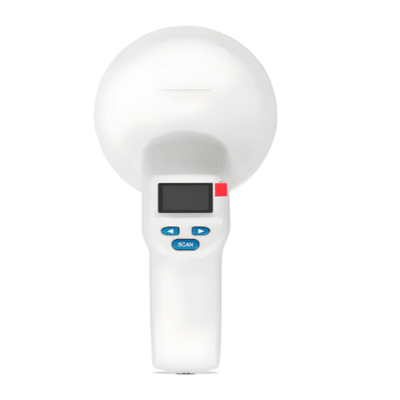

The Inventory Master handset adopts wireless read-in mode and supports the electronic label in FDX-B (ISO 11784/85) format. This scanner uses high brightness OLED display which can be seen clearly in bright light environment. It can store max 20000 records of tag information with its built-in memory, users can upload the information to the computer through USB cable. This product is stable with simple operation which is widely used for little animal management, resource management, railway inspection etc.
Technical Specifications
| Working Frequency | 134.2KHz |
| Support Tag | FDX-B (ISO11784 or ISO11785) |
| Reading Range | 0.078 in x 0.47 in (2mm x 12mm) glass tube label > 5.91 in (15 cm) 1.18 in (30mm) animal ear marker >9.84 in (25cm) (related to reader and use environment) |
| Standard | ISO11784 or ISO11785 |
| Reading Time | <100 ms |
| Prompt | 128 x 64 high brightness OLED, Buzzer |
| Power Supply | Li-battery |
| Consumption | Less than 100mA |
| Storage Capacity | 20000 records (UID + Time) |
| Battery Life | >50000 times if full of electricity |
| Interface | USB2.0, Bluetooth |
| Weight | 12.34ounces (350g) |
| Device Dimension | L:11.02 in (28 cm) W: 5.71 in (14.5cm) H:1.97 in (5cm) |
| Packing Dimension | L:12.60 in (32cm) W: 7.09in (18cm) H: 2.76 in (7cm) |
| Language | Chinese, English, Japanese, Russian |
| Working Temperature | 14∘F to 122∘F (-10℃ to 50℃) |
| Storage Temperature | −22∘F to 158∘F (-30℃ to 70℃) |
