Overview

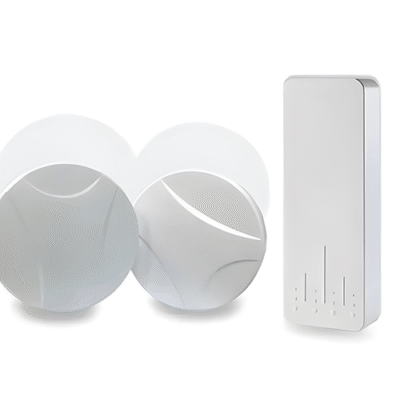

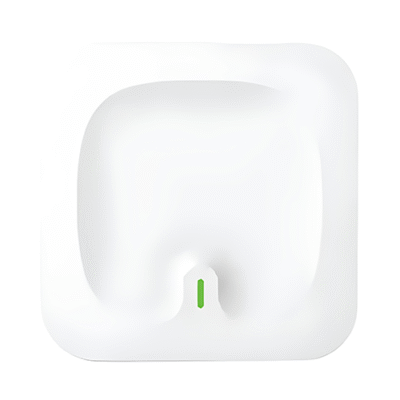

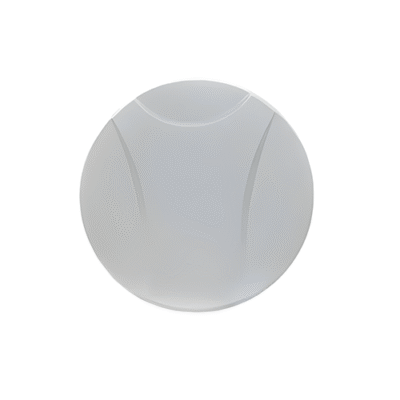

The Inventory Master bluetooth wireless beacon gateway is 4G Bluetooth gateway and it supports sending data back to the cloud in three ways WiFi, Ethernet and 4G network which is suitable for various installations and application scenario and the collected data is transmitted to the cloud server through the 4G network.
Features
- Bluetooth 5.0 version development
- Wifi, Ethernet, 4G network modes
- 200 meters long distance coverage
- TCP, UDP, MOTT three communication protocols
Technical Specifications

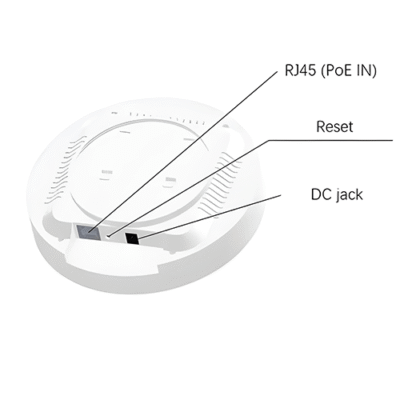

| Power Supply | Standard POE (IEEE 802.3af, at) or DC 12 V interface. |
| Installation Method | Bracket screw fixation |
| Frequency | 2.401 GHz to 2.481 GHz |
| Installation Height | ≤10 M |
| Transmission Protocol | TCP |
| Material | ASA Engineering Plastics, Aluminium |
| Stare Temperature | -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) |
| Operating Temperature | -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) |
| Size | 6.61 in x 1.96 in (168 mm x 50 mm) |
| Antenna Dimension | 5.03 in x 5.03 in x 0.78 in (128 mm × 128 mm × 20 mm) |
| Weight | 0.66 lb (300 g) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
