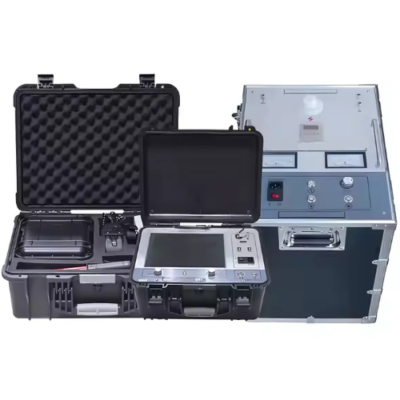

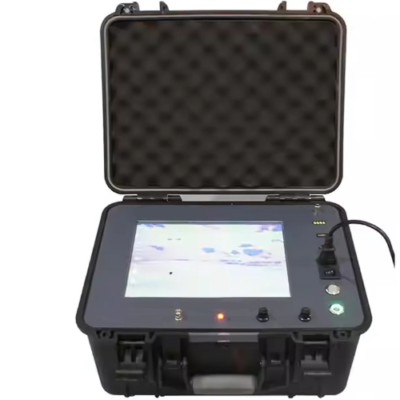

Cable Fault Locator with Advanced Fault Detection Methods – The Inventory Master

Name: Cable Fault Locator with Advanced Fault Detection Methods – The Inventory Master - The Inventory Master
SKU: TIMET-179

Reliable cable fault tester with advanced measurement features, providing accurate distance, accurate path, and depth detection for cables.

SKU: TIMET-179 Category: Industrial Ethernet

Features

Test Methods	Low Voltage Pulse, Flashover Method, Audio Method, Acoustic Magnetic Synchronization Method
Test Range	37,2823 mi (60 km) Max, 49.21 ft (15 m) Min
Detection Depth	6.56 ft to 16.4 ft (2 m to 5 m)
Measurement Accuracy	± 32.81 ft (10 m) (rough), ± 0.66 ft (0.2 m) (precision)
Sampling Frequency	400 MHz
Minimum Resolution	1.64 ft (0.5 m)
Pulse Amplitude	100 Vpp
Pulse Width	0.1 μS and 2 μS
Output Power	Path Power: 100W; Impact Power: 0 to 400W
Short Circuit Current	0 mA to 100 mA
Burn Through Power	0 J to 900J
Power Supply	12 V / 10 Ah DC (built-in, continuous for 10 hours)
Display	12 in Industrial Grade All-in-One LCD Display
Control Mode	Touch Operation, Windows Operating System
Operating Temperature	14 °F to 122 °F (-10 °C to 50 °C)
Weight	26.46 lbs (12 kg)
