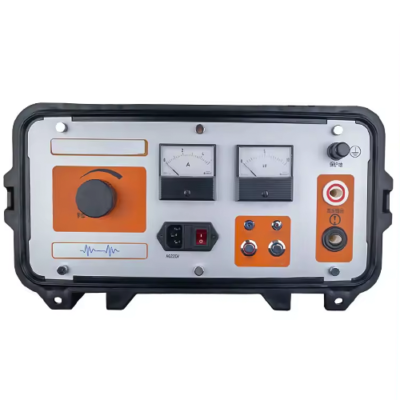

Features
- Accurate Distance Measurement
- High Power Transmitter Output
- Wireless Communication Functionality
- Robust Operating Conditions
- Easy-to-Use Wireless Sensor
Technical Specifications
| Accuracy | 0.2 m (0.66 ft) |
| Output Frequency | 1 Hz |
| Open Circuit Voltage | 0 V 2800 V (pulsating DC, peak 8kV) |
| Short Circuit Current | 0 mA to 35 mA (pulsating DC, peak 100 mA) |
| Wireless Communication Distance | 98.43 ft (30 m) minimum |
| Transmitter Power Supply | AC 220 V mains, generator connection possible (output power ≥ 1500 W) |
| Transmitter Power | 900 W max |
| Sensor Power Supply | 3 x 7 alkaline dry batteries |
| Receiver Power Supply | 5 x 5 alkaline dry batteries |
| Operating Humidity | 5% to 90% RH |
| Altitude | < 14764.9 ft (< 4500 m) |
| Operating Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Transmitter Size | 17.91 in x 13.19 in x 12.2 in (45.5 cm x 33.5 cm x 31 cm) |
| Sensor Size | 7.09 in x 3.94 in x 1.38 in (18 cm x 10 cm x 3.5 cm) |
| Receiver Size | 8.07 in x 3.94 in x 1.38 in (20.5 cm x 10 cm x 3.5 cm) |
| Weight (Transmitter) | 15 kg (33.07 lbs) |
| Weight (Sensor) | 0.45 kg (0.99 lbs) |
| Weight (Receiver) | 0.45 kg (0.99 lbs) |
