Features

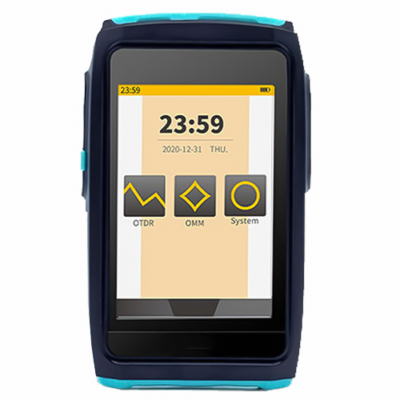

- High definition multi touch screen
- Fast, sensitive screen response
- Supports OTDR, OPM, OLS
- Includes VFL and LED
Technical Specifications
| Measurement Mode | Real-time, Average, Automatic |
| Type-C Cable | Type-Cx1 |
| Self Calibration | Support |
| LED Light | Support |
| Dynamic Range | 20 dB |
| Test Range | 0.06 mi to 49.71 mi (0.1 km to 80 km) |
| Wavelength | 1550(±20 nm) to ZS1000-A/B |
| OTDR/OLS Connector | SC/UPC |
| Pulse Width | 5 ns to 20 us |
| Measurement Time | 5 s to 180 s |
| Attenuation Dead Zone | 39.37 ft (12 m) |
| Event Dead Zone | < 9.84 ft (3 m) |
| Sampling Point | 8000 |
| Input Light Detection | Support (1277 nm <10 dBm, 1310 nm <10 dBm, 1490 nm <10 dBm) |
| OPM | -50 to +26 dBm |
| Wavelengths Supported | 850/1300/1310/1490/1550/1625 nm |
| Connector Type (OPM/VFL) | 0.098 in (0.25 cm) universal connector |
| VFL Power | 10 mW |
| LCD Screen | 3.5-inch high-definition touch screen |
| Working Temperature | 32 ℉ to 122 ℉ (0 °C to 50 °C) |
| Relative Humidity | <90% |
| Size (HWD) | 4.60 in x 2.75 in x 1.29 in (11.7 cm × 7 cm × 3.3 cm) |
| Weight | About 7.65 oz (217 g) |
