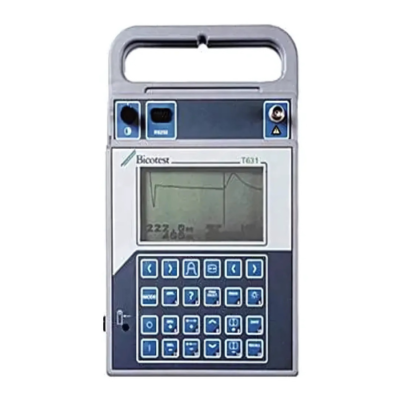

Features
- Precise fault detection
- Advanced signal diagnostics
- Efficient cable testing
- Durable and portable design
Technical Specifications
| Application | Designed for CATV, CCTV, and data cable systems |
| Display | High-resolution LCD with backlighting |
| Memory | 15 locations for storing and recalling waveforms |
| Interface | RS232C for PC connectivity |
| Output Impedance | Selectable: 50, 75, or 93 Ohms |
| Pulse Amplitude | 2.5 V into selected impedance |
| Pulse Widths | User-selectable: 2 ns to 1200 ns |
| Propagation Velocity | Variable: 295 ft/μs to 984 ft/μs (90 to 300 m/μs) |
| Gain | 0 dB to 60 dB, selectable in 6 dB steps |
| Ranges | 0 ft to 9.8 ft (0 m to 3 m) to 0 mi to 7.5 mi (0 km to 12 km) in 13 ranges |
| Accuracy | Typically < 0.5% |
| Resolution | ±0.05% of range at 7.5 miles (12 km) |
| Noise Reduction Filter | 16 MHz Low pass |
| Power Supply | Internal NiMH batteries (8 hours operation) External AC adaptor (120 V or 230 V) |
| Operating Temperature | 23°F to 122°F (-5°C to +50°C) |
| Dimensions | 7.1 in x 11.8 in x 3.0 in (18.0 cm x 30.0 cm x 7.5 cm) |
| Weight | 5.5 lbs (2.5 kg) including battery |
