Overview

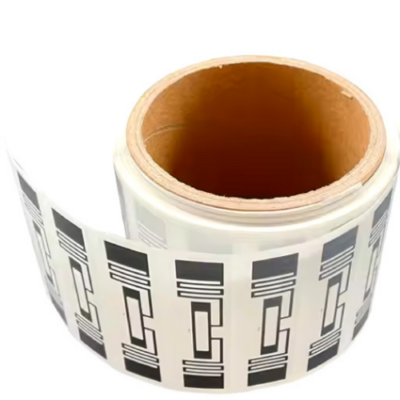

Cheap UHF RFID Label or Sticker or Tag for Asset Tracking offers in both dry and wet variants. Dry inlays consist of an antenna, chip, and chip package without adhesive, while wet inlays include adhesive, PET, and release paper for easy attachment. They support various frequencies like 869 MHz to 915 MHz (UHF), 13.56 MHz (ISO 14443), and 13.56 MHz (ISO 15693). Additionally, MIND provides antenna design services to meet custom customer requirements.
Technical Specifications
| Protocol | ISO 18000-6C |
| Special Features | Waterproof or Weatherproof, MINI TAG |
| Communication Interface | RFID |
| Frequency | 860 MHz to 960 MHz |
| Material | Glassine paper, Coated paper, PET, Synthetic paper, etc |
| EPC Memory | 160 bits |
| IC Life | 100,000 Programming cycles, 10 years data retention |
| Antenna | Aluminum antenna, 2.76 in × 0.55 in (70 mm × 14 mm) |
| Wet Inlay/Label Size | 2.87 in × 0.71 in (73 mm × 18 mm) or customized |
| Customization Options | Encode, printing, pre-programmed, etc |
| Application | Logistics, clothing, library, and other assets tracking |
| Material | Coated Paper, PET, Synthetic paper, Thermal paper |
| Working Mode | Passive |
| Write Cycles | 100,000 |
| Operating Temperature / Humidity | -13°F to 122°F or 20% to 80% RH (-25°C to +50°C or 20% to 80% RH) |
| Storage Temperature / Humidity | +73.4°F ± 9°F or 50% ± 10% RH (Without condensation) (+23°C ± 5°C or 50% ± 10% RH) |
| Antenna Size | 2.76 in × 0.55 in (70 mm × 14 mm) |
| Size | 2.87 in × 0.71 in (73 mm × 18 mm) or customization |
| EPC Class | Class 1 Gen 2 |
