Features

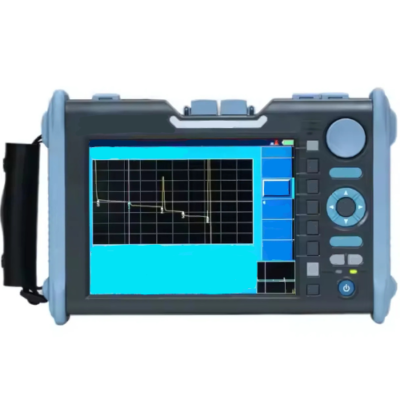

- Compact Handheld Device
- Wide Dynamic Range
- Short Dead Zone
- Color TFT Display
Technical Specifications
| Applicable Fiber | Single-mode: SM (ITU-T G.652); Multimode: GI (62.5/125µm, 50/125µm) |
| Light Source | ≥ -5 dBm (±0.1 dB) |
| Optical Power Monitor | -50 dBm to -5 dBm (±0.5 dB) |
| File Formats | Read: SOR, TRD, TRB, SET (AQ7270/75); Write: SOR (Telcordia), SET, CSV, BMP, JPG, PNG |
| Storage Capacity | Internal: 1000 waveforms; External: via USB |
| Display | 8.4-inch color TFT LCD (640 × 480) |
| Power Supply | Battery: 10.8 V, 2100 mAh; AC power adapter: 100 to 240 V, 50/60 Hz |
| Battery Operation | 6 hours |
| Recharge Time | 5 hours |
| Interface | USB 1.1; LAN (optional) |
| Dynamic Range | SM: 40 to 38 dB; GI: 22.5 to 24 dB (62.5GI), 21 to 22.5 dB (50GI) |
| Event Dead Zone | 3.28 ft (1 m) maximum for 850/1300 nm; 2.62 ft (0.8 m) maximum for 1310/1550 nm |
| Attenuation Dead Zone | 22.97 ft (7 m) for 1310 nm; 26.25 ft (8 m) for 1550 nm; 19.69 ft (6 m) for 850 nm; 32.8 ft (10 m) for 1300 nm |
| Distance Range | 1640 ft to 328,084 ft (500 m to 100 km) for 850/1300 nm; 1640 ft to 1,677,165 ft (500 m to 512 km) for 1310/1550 nm |
| Pulse Width | 9.84 ft to 164.04 ft (3 ns to 5 µs) for 850/1300 nm; 9.84 ft to 393.7 ft (3 ns to 20 µs) for 1310/1550 nm |
| Sampling Resolution | 0.16 ft to 104.99 ft (5 cm to 32 m) |
| Readout Resolution | 0.39 in (1 cm) minimum |
| Sampling Points | Up to 50,000 |
| Group Refractive Index | 1.30000 to 1.79999 (0.00001 step) |
| Units | km, kf, or miles |
| Vertical Axis Scale | 0.2 to 7.5 dB/div |
| Readout Resolution | 0.001 dB minimum |
| Operating Temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Dimension | 11.3 in × 7.8 in × 3.35 in (28.7 cm × 19.7 cm × 8.5 cm) |
| Weight | 6.17 lbs. (2.8 kg) |
