Overview

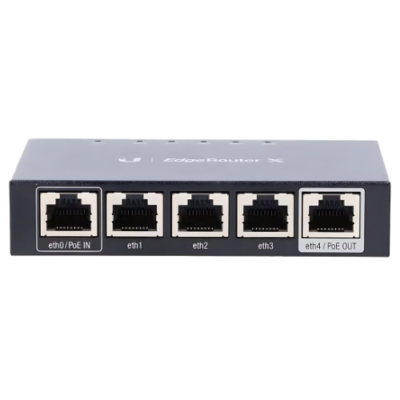

The Edge Router, part of the Edge MAX platform, combines carrier-class reliability with excellent price-to-performance value in an ultra-compact form factor. Two models are available. The standard model can be powered by an external power adapter or 24V passive PoE input. A passive PoE pass-through option is available to support a single airMAX® device. It is powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for airMAX or UniFi® devices, while its this port provides fiber connectivity to support backhaul applications. every router can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Technical Specifications
| Button | Reset |
| LED | Power, Ethernet 0 to 4 |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| System Memory | 256 MB DDR3 RAM |
| Code Storage | 256 MB NAND |
| Max. Power Consumption | 5W |
| Power Input | 12VDC, 0.5A Power Adapter (Included) or 24V PassivePoE |
| Power Supply | External AC or DC Adapter |
| Supported Voltage Range | 9 to 26VDC |
| Wall-Mount | Yes |
| ESD/EMP Protection | Air ± 24 kV, Contact ± 24 kV |
| Operating Temperature | 14 ° F to 113 ° F (-10 ° C to 45 ° C) |
| Operating Humidity | 10 to 90% Noncondensing |
| Dimensions | 4.33 in x 2.95 in x 0.87 in (110 mm x 75 mm x 22 mm) |
| Weight | 6.17 oz (175 g) |
