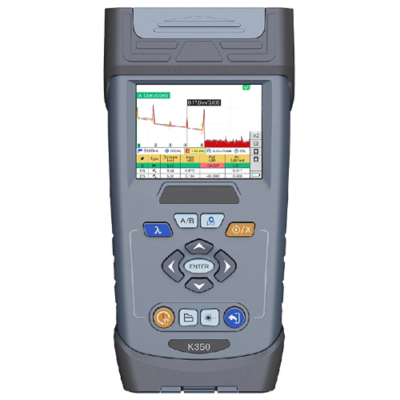

Features
- Dual wavelength testing
- Compact and lightweight
- Built-in testing modules
- Pass/Fail judgment functions
Technical Specifications
| Link Map | Available |
| Pass/Fail Judgment | Available |
| Distance Unit | m, km, mile, ft, kft |
| PC Analysis Software | Available |
| Languages | English, Español, Chinese, Português, Français, Русский |
| Optical Connector | SC/UPC (FC/UPC, ST/UPC, LC/UPC is Optional) |
| Display | 3.5-inch color TFT LCD (Resolution: 640 × 480) |
| Electrical Interface | Charge port × 1, USB 2.0 × 3, RJ45 × 2 |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Altitude | 4000 m (13,123ft) |
| Humidity | 0 % to 90 % RH (non-condensing) |
| Power Requirements | 100 to 240VAC, 50/60Hz (AC Adapter) |
| Battery | 3000 mAh |
| LED Light Illumination | ≥15000 mcd |
| Operating Time | 5 hours |
| Data Storage | Internal: ≥1000 waveforms; External: USB memory |
| Distance Range | 0.3 mi (0.5 km) to 124 mi (200 km) |
| Pulse Width | 5 to 20000ns |
| Event Dead Zone | 3.3 ft (1 m) |
| Attenuation Dead Zone | 11.5 ft (3.5 m) |
| Number of Sampling Points | Max. 80000 |
| Sampling Resolution | 1.6in (0.04m) |
| Distance Measurement Accuracy | ± (2.46ft + Measurement Distance × 2 × 10⁻⁵ + Sampling Resolution) |
| Loss Measurement Accuracy | ±0.03 dB |
| Return Loss Measurement Accuracy | ±2 dB |
| OPM (Optical Power Meter Module) | Available |
| Wavelength Setting | 800 nm to 1650 nm |
| Power Range | -70 dBm to +6 dBm |
| Measure Accuracy | < ±0.2 dB or ±5% |
| Display Resolution | 0.01dB |
| Optical Input Port | SC/UPC + 2.5mm Universal Ferrule |
| SLS (Stabilized Light Source) | Available |
| VFL (Visual Fault Locator) | Available |
| Dimension | 4.6 in × 8.6 in × 2.1 in (11.8 cm × 21.8 cm × 5.5 cm) |
| Weight | 1.6 lbs (0.73 kg) |
