Overview

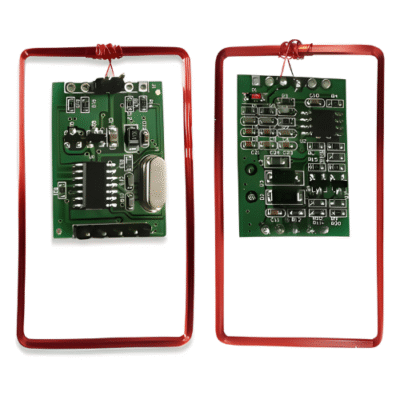

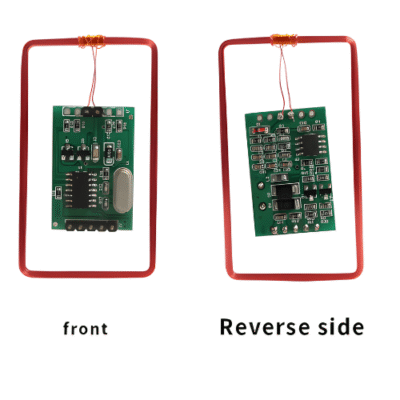

RFID 125khz Antenna Module 0.2 mm Wire has Frequency 125 KHZ, Reader interval 0.5 Sec, and PCB size 1.2 in X 0.78 in, Read Range 0 in X 1.96 in.
Technical Specifications
| Frequency | 125 KHZ |
| Protocol | ISO 14443A |
| Interface | UART |
| Working Voltage | 5 V |
| PCB Size | 1.2 in X 0.78 in (30.5 mm X 20 mm) |
| Read Range | 0 in X 1.96 in (0 mm to 50 mm) |
| Reader Interval | 0.5 Sec |
| Dimensions | 5.70 in x 3.54 in x 1.57 in (145 mm x 90 mm x 40 mm) |
| Weight | 0.33 lb (0.150 kg) |
