Features
- 12th gen Celeron J6412
- Realtek LAN
- DDR4 RAM, up to 32 GB
Technical Specifications
| Material | High-Quality all Aluminium, Surface Hard Anodized |
| Processor | Intel Celeron J6412 (Quad Core Quad Threads, 2.0GHz, Max Turbo 2.6GHz) |
| Memory | 1 x DDR4 3200MHz SODIMM RAM Slot, Max Support 32GB |
| BIOS | AMI EFI BIOS |
| Chipset | Intel(R) UHD Graphics |
| Display Port | 2 x HD (Support Synchronous and Asynchronous Dual Display, Max Resolution Support 4096 x 2160 at 60Hz） |

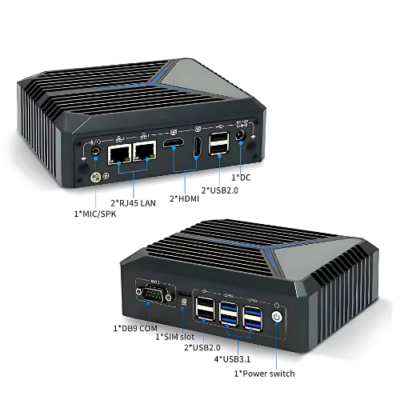

| Front I/O | 1 x Power Switch, 4 x USB 3.1, 2 x USB 2.0, 1 x DB9 COM, 1 x SIM Slot |
| Rear I/O | 1 x DC, 2 x USB 2.0, 2 x HD, 2 x RJ45 LAN, 1 x Audio (Supports Mic and Speaker Simultaneously) |
| Expansion Slot | 1 x M.2 2280 M-Key Slot (Support SATA Protocol), 1 x Mini PCIE Slot, Wi-Fi or 4G |
| Expansion Port | Standard Version Doesn’t Include these Ports: GPIO (8 in & 8 out), 2 x LAN Ports, 4 x COM, 2 x USB2.0 |
| Network | 2 x Realtek 8111H 1000M LAN |
| Power Supply | DC 12V |
| Storage | 1 x M.2 2280 Slot (SATA Signal), 1 x 2.5-Inch SSD or HDD |
| Power Supply | DC 9 to 36V Wide Voltage, Support Positive and Negative Electrode Protection |
| Other Functions | Auto Power On when There is Electricity, Timing Boot, Wake On LAN, PXE Boot, Watchdog (0 to 255 Level) TPM2.0 Security Encryption |
