Overview

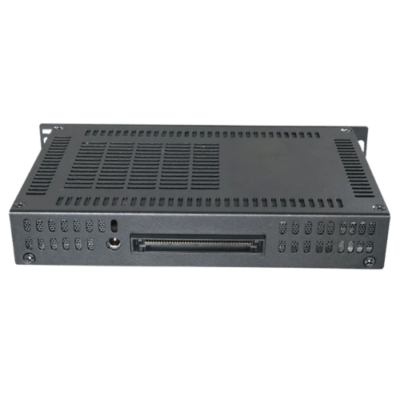

The Inventory Master’s Compact Intel 12th/13th Gen OPS Computer – The Inventory Master with features like onboard Intel 12th Alder Lake-U/-P/13th Raptor Lake series processors, delivering exceptional processing power and efficiency for demanding tasks. Available with Windows 10, Windows 11, and Linux operating systems, this device caters to various user preferences and requirements, making it a versatile choice for different applications. Equipped with 1xMini DP, 1xHDMI 2.0, 2xUSB 3.0, and 2xUSB 2.0 ports, this device ensures seamless connectivity and data transfer speeds, ideal for gaming, video editing, and other resource-intensive activities. Measuring 7.09 in x 4.69 in x 1.18 in (180 mm x119 mm x30 mm), this OPS computer is designed to be compact and space-efficient, making it perfect for integration into various devices, such as golf bags, without compromising on performance. With a max support of 48GB RAM and optional Intel I219 LAN, this device allows for easy customization to meet specific user needs, enhancing its versatility and versatility in various applications, including golf-related activities.
Technical Specifications
| rocessor System | Onboard intel 12th alder lake-U/-P/13th raptor lake series processorEFI BIOS |
| TPM2.0 | CPU built-in, optional external TPM2.0 |
| Ram | 1xDDR5 SO-DIMM，onboard ram optional，max support 48GB |
| Storage | 1xM.2 M-Key 2280，NVMe PCIe 4.0 x4 protocol，SATA3.0 protocol optional 1×2.5inch HDD port (with SATA3.0 choose one of two) 1x SATA3.0 interface, 2Pin 5V (alternative to 2.5-inch HDD) |
| Display | 1xHD-MI2.0 interface supporting 4096×2160, 60Hz. 1xMini DP, supporting 4096×2160,60Hz. 1xType-C, supporting double-sided USB3.1 and DP 4K and 5V 3A output Support synchronous or asynchronous display |

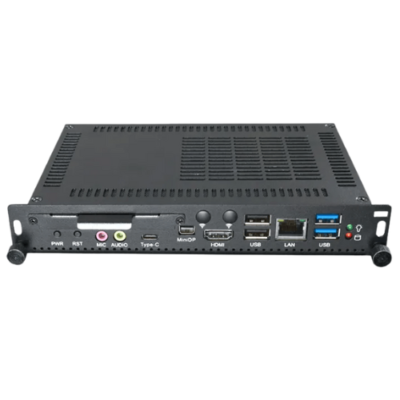

| I/O Interface | 1xMini DP, 1 HDMI2.0, 2 USB3.0, 2 USB2.0. 1xLAN(RTL8111 network, optional Intel i219) 1xpower indicator, 1 hard disk indicator, 1 switch button, 1 reset button. 1xType-C 1xMic-in, 1 line-out 1xDC JACK power interface |
| Extended Interface/Function | 1xM.2 E-Key(PCIe 3.0+USB2.0 protocol, supporting WIFI/BT module) 1xM.2 B-Key(USB2.0+USB3.0 protocol, supporting 4G/5G modules) 1xset of 8-bit GPIO pins, 2x5Pin, with a spacing of 2.0 mm 1xset of RS232 stitches, 2x5Pin, with a spacing of 2.0 mm 1x4Pin SYS FAN, 1 4Pin CPU FAN |
| Power Supply | ATX power supply |
| Operating System | 6th CPU supports windows7 windows10 LINUX 7th CPU supports windows10 LINUX |
| Product Size | 7.09 in x 4.69 in x 1.18 in (180 mm x119 mm x30 mm) |
| Weight | The net weight is about 26.46 oz (750 g) |
