Features
- Laser sensors for collision avoidance
- Positioning and Detection
- Overhead crane
- Crane avoidance
- Tripper car
- Distance between vehicles
- Steel slab detection and positioning
- Pipe or tree length cutting system
- Camera focusing
- Surveillance detection and camera focusing
- Vehicle profiling
- Fixed point traffic monitor
- Truck loading system
- Parking garage system
- Bridge height clearance
- Ship docking
- Targeting systems
- In-flight refueling

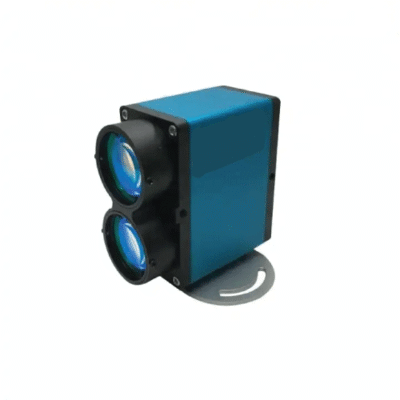

Technical Specifications
| Resolution | 0.39 in (1 cm) |
| Repetition Resolution | ±1.57 in (±4 cm) |
| Measurement Accuracy | 1.96 in to 7.87 in (5 cm to 20 cm) |
| Laser divergence angle | 4 m rad |
| Laser Type | Semi conductor wavelength 905 nm invisible laser and safety to human eye |
| Measurement mode | measurement by the command , continuous measurement |
| Measurement time | 3 ms to 5 ms |
| Power Consumption | <1 W (ranging power) and <0.1 W (Standby Power) |
| Input Voltage | 5 V DC to 28 V DC |
| Communication interface | TTL, RS 232, RS 485,4 mA to 20 mA and 0 V to 5 V (Optional) |
| IP Grade | IP 65 |
| Dimensions | 2.95 in to 2.36 in to 1.57 in (75 mm x 60 mm x 40 mm) |
| Weight | 0.62 lb (285 g) |
