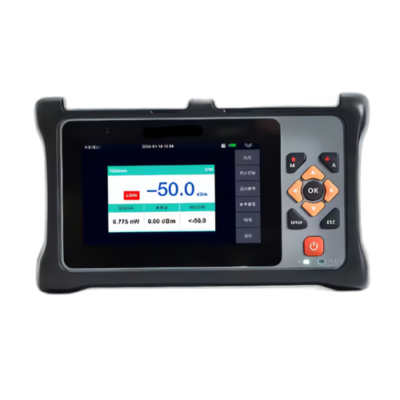

Features
- Multi-Function Fiber Tester
- High-Capacity Battery
- Scratch-Resistant Screen
- USB and SD Expansion
Technical Specifications
| File Format | Standard SOR file format |
| Safety Level | Class 3B |
| Refractive Index | 1.0000 to 2.0000 |
| Reflection Accuracy | ±3 dB |
| Sampling Points | Maximum 20,000 |
| Linearity | ±0.2 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Range Resolution | 0.003 ft (0.001 m) |
| Data Storage | Internal: ≥1000, External: SD card |
| Power Adapter | USB (Type C) |
| Display | 4.3 in TFT LCD, Capacitive Touch Panel |
| Measuring Range | 328 ft to 295275.6 ft (100 m to 90 km) |
| Event Dead Zone | 3.94 ft (1.2 m) |
| Attenuation Zone | 19.7 ft (6 m) |
| Pulse Width | 5 ns to 10 μs (triple wavelength max is 2μs) |
| Sampling Resolution | 7.87 in to 26.2 ft (20 cm to 8 m) |
| Distance Accuracy | ± (3.28 ft + Sampling interval + 0.005% × measuring range) (excluding refractive index error) |
| Battery | 3.7V/5200 mAh, standby time >10 hours |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimension | 6.89 in × 4.13 in × 1.77 in (17.5 cm × 10.5 cm × 4.5 cm) |
| Weight | 0.99 lb. (450 g, including battery) |
