Overview

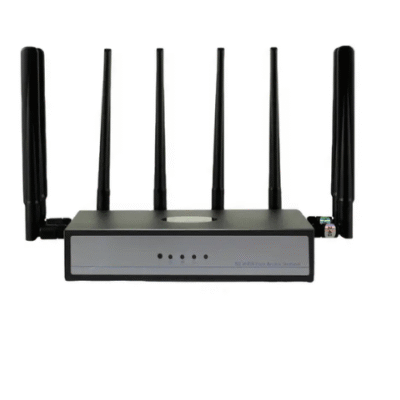

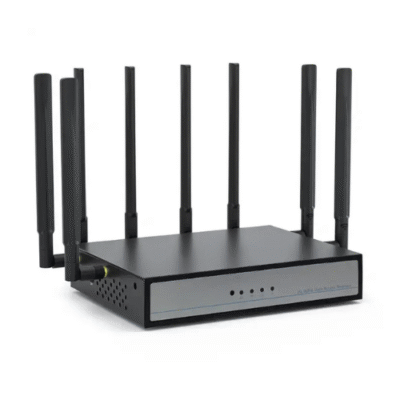

The Inventory Master Custom Portable Smart Home Wi-Fi with 5G & Wi-Fi 6 Technology are based on brand-new embedded platforms. They can satisfy growing mobile connection requirements and provide speeds beyond your imagination. The CPEs are compatible with NSA or SA dual-mode, suitable for all network types worldwide. It means you can simply plug in and play them and enjoy ultra-fast broadband connections anywhere. The CPEs bring a new way to enable you to experience VR, AR, or 4K and 8K streaming freely and easily. With 802.11ax (Wi-Fi 6) technology built-in, the CPEs have wider wireless coverage and more bandwidth. Meanwhile, the CPEs offer higher security and better network efficiency.
Technical Specifications
| Main Chipset | Qualcomm Snapdragon X55 + MT7621AT |
| Memory | 16 MB Flash + 256 MB DDR3 |
| Wi-fi Protocol | IEEE 802.11ax |
| Ethernet | 1 x 1 Gbps WAN,2 x LAN 1 Gbps |
| Button | Reset, MESH+, MESH+ LED Switch |
| LED Indicator | MESH+ Working Status (breathing light), 4G Status, 5G Status, Wi-Fi Status, Power Status |
| DC Power Supply | 12 V or 2 A |
| Max Power Consumption | < 20 W |
| 5G Cellular | Built-in UNISOC V510 modem with Qualcomm X55 chip, it has best 5G mobile network performance and works with integrated worldwide 5G to 2G multi-mode. (1) 5G Baseband: UNISOC V510Modem-RF System (2) 5G Network Modes: SA (standalone), NSA (non-standalone) (3) 5G Bands: n2, n5, n40, n41, n66, n71, n77, n260, n261. (4) 5G Standards: 3GPP Release 15 (5) 5G SA Transmission Speed: 2 Gbps or 1000 Mbps (up to ISPs) (6) 5G NSA Transmission Speed: 2 Gbps or 576 Mbps (up to ISPs) |
| 4G Cellular | (1) LTE-FDD: B2, B4, B5, B12, B13, B14, B17, B29, B30, B66, B71 (2) LTE-TDD: B34 or B38 or B39 or B40 or B41 (3) LTE: Down 600 Mbps; UP 150 Mbps |
| Wi-Fi 6 (802.11ax) | The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line, more client connection, lower cost. (1) Working Radio: #1: 600 Mbps 2.4 GHz; #2: 1200 Mbps 5.1 GHz to 5.8 GHz (2) Coding Technology:1024-QAM or OFDMA (3) Peak Connections:>100+ Clients (4) Wi-Fi Standard Conformance: WiFi6 and 802.11ac or 802.11n backward (5) Antenna: 4 high-performance external omnidirectional antennas with 4 pcs external FEM components |
| Hybrid MESH+ Networking | The CPE inherits the mesh technology and supports “wired or wireless” hybrid networking It’s so convenient to cover all corners and dead zones by adding one more MESH+ node (another series of routers). It improves the deployments of wireless networks and optimizes the seamless features. |
| Data Switching | Mobile 4 G or 5 G Connection (Support APN) Giga Ethernet Connection MESH: MESH+ hybird 4 GHz or 5 GHz WiFi Advanced Firewall MAC Filter WiFi Security VPN Passthrough and VPN Client (L2TP PPTP) IPV4 or IPV6 WEB or APP Mangement Firmware upgrade |
| Dimension | 8.267 in x 6.299 in x 1.614 in (210 mm x 160 mm x 41 mm) |
| Weight | 1.98 lb (900 g) |
