Overview
Advanced access control device with 360° scanning, 2D or 1D symbology support, customizable voice output, and robust communication options.
Features
- Customized Support Tailored software solutions and branding assistance
- Symbology Supports 1D, 2D, and ID card scanning
- Light Source Utilizes a white LED for illumination
- Reading Distance Effective range from 10 to 5.5 centimeters.
- Power Input Compatible with 5 to 28VDC power sources
- Communication Protocol Supports 4G and various communication protocols TCP, UDP, HTTP
- Scan Angle Offers a 360° full angle scanning capability
- Certification Compliant with CE, FCC, and ROHS standards
- Application Suitable for both indoor and outdoor environments
- Type Face recognition technology for facial identification
- Wired or wireless network + QR code scanning head + RFID card reader
- Door Lock Output: 1 way, relay capacity DC30V or 3A Door Sensor Input: 1 way Button Input: 1 way
- Communication Transmission: RJ45 network port, wireless 4G full Netcom
- Voice Output: Built-in amplifier speaker, customizable voice, and extendable TTS voice
- Card-reading Attributes: support RFID card reading, card sector reading and writing, anti-copy CPU card reading and writing
Technical Specifications
| Image Sensor | 752 X 480 |
| Light Source | White LED |
| Symbology | 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code |
| 1D: CODE 128, UCC or EAN to 128, AIM to 128, EAN to 8 etc. | |
| Reading Distance | 0.3937in to 2.1654in 0.3937 inches , 2.1654 inches |
| Scan Angle | 360° Full Angle |
| Power Input | 5VDC to 28VDC |
| Working Current | < 500mA |
| Can Read Like ISO14443Aor ISO14443B Card Serial Number | M1 card, 1208 CPU card, and can choose IC write sector or CPU card anti-copying solution |
| Barcode Or 2D Code Input | Output IC card number common read head function and associated card number output in compliance with QR code reservation rules |
| Frequency | 125 khz |
| Communication Interface | Wired network port RJ45 10M or 100M, WIFI, full Netcom 4G for data transmission |
| Communication Protocol | Support TCP or UDP or PPP or FTP or HTTP or HTTPS or FTPS or MQTT |
| Voice Output | Built-in amplifier speaker, customizable voice, and extendable TTS voice |
| Device Input | 5VDC to 28VDC |
| Equipment Output | Door Lock Output: 1 way, relay capacity DC30V or 3A Door Sensor Input: 1 way Button Input: 1 way |

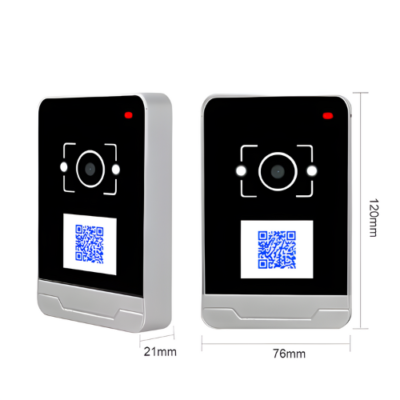

| Dimension | 4.7244in x 2.9921in x 0.9843in 4.7244 inches×2.9921 inches. x 0.9843 inches |
