Overview

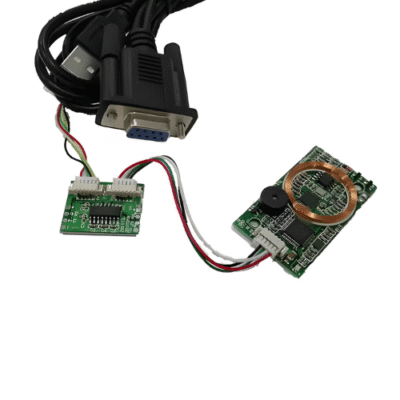

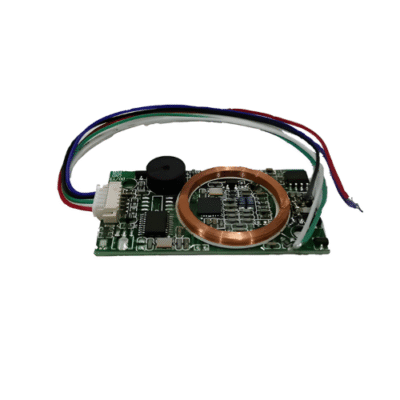

The Inventory Master 125 khz card RFID Reader standard Module is a standard module based on IEC or ISO 14443-A protocol and 125 KHZ dual frequency band. It has the characteristics of plug and play, rich communication interface, etc. At the same time, the serial port communication also supports active card reading (reading when the card is close to it) and passive card reading (sending instructions to read the card), card number format switching; the module comes with a single-chip control without secondary Programming can be seamlessly connected to various operating systems. It can be widely used in cloud intercom systems, charging piles, electronic shift signs, one-card applications, automatic vending, conference sign-in, information entry, and many industries in the field of commercial display to meet different user application scenarios.
Technical Specifications
| Frequency | 125 KHz |
| Contactless Card | EM S 50 S 70 F 08 Ntag |
| Type | Magnetic Card |
| Operating Voltage | DC 3.3 V to 5 V |
| Interface | USB |
| Read Time | <1 s |
| Function | Information, Encrypt or Decrypt Payment Identification |
| Data Transmission Mode | Serial |
| Standard | Uem + ISO 14443-a |
| Reading Distance | 0 ft to 0.16 ft (0 cm to 5 cm) |
| Material | ABS |
| Interface 2 | USB, Ttl, RS 232, RS 485, Wiegand 26 or 34 |
| Applicable Platform | Windows Android Linux |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Size | 3.77 in X 2.4 in X 0.43 in (96 mm X 61 mm X 11 mm) |
