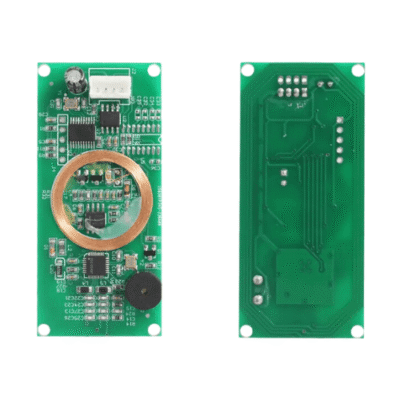

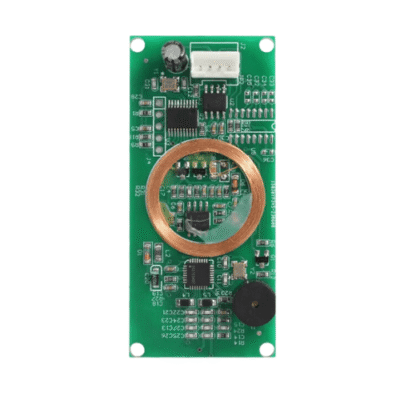

Dual-Frequency NFC RFID Reader Module 13.56 MHz & 125 KHz with UART/RS232/USB – The Inventory Master
Dual-Frequency NFC RFID Reader Module 13.56 MHz & 125 KHz with UART/RS232/USB – The Inventory Master
  1. Dual-Frequency NFC RFID Reader Module 13.56 MHz & 125 KHz with UART/RS232/USB – The Inventory Master
  2. Dual-Frequency NFC RFID Reader Module 13.56 MHz & 125 KHz with UART/RS232/USB – The Inventory Master

Dual-Frequency NFC RFID Reader Module 13.56 MHz & 125 KHz with UART/RS232/USB – The Inventory Master

Versatile NFC RFID Reader Module supports 13.56 MHz & 125 KHz frequencies. Offers UART, RS232, or USB modes, with a 0-2.36 in range and <100 mA current.

SKU: TIMHMOD-141 Category:

Features

  • Dual Frequency Compatibility
  • Working Frequency
  • Reader Interval
  • Support Cards
  • Working Mode
  • Read Range
  • Supply Ability



Technical Specifications

Frequency13.56 MHz 125 KHz
Reader Interval0.5 seconds
Support CardsID cards, S 50, S 70, FM 1208, NTAG 203, DESFire, FM 11 RF 08
Read Range0 in to 3.14 in (0 mm to 80 mm)
ProtocolUART
Temperature-40 °F to 185 °F (-40 °
Dimension2.75 in X 1.25 in X 0.39 in (70 mm X 32 mm X 10 mm)
Weight5.29 oz (150 g)
