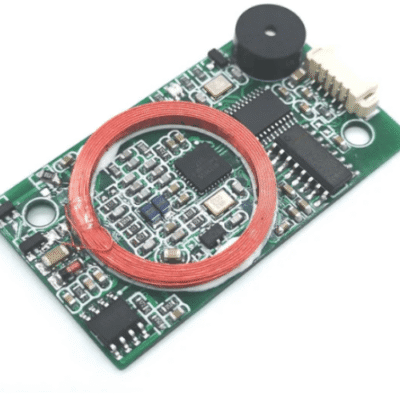

Dual Frequency RFID Module with USB and Wiegand Interfaces – The Inventory Master

The Inventory Master’s dual frequency RFID module supports 13.56 MHz and 125 KHz, with keyboard emulation, and interfaces including TTL, Wiegand 26/34, and USB.

SKU: TIMHMOD-118 Category:

Features

  • Compatible with EM 4100, EM 4200, TK 4100, MIFARE S50, MIFARE S70, and MIFARE Ultralight
  • Operates at 13.56 MHz and 125 KHz Frequency
  • Safe to store between −4 °F to 176 °F
  • Effective reading distance range of 0 ft to 0.16 ft
  • Power supply of 3.3 V



Technical Specifications

Frequency13.56 MHz and 125 KHz
InterfaceTTL, Wiegand 26 or Wiegand 34, USB
Power Supply3.3 V to 5 V
Current< 70 mA
AntennaIntegrated
Reading Distance0 ft to 0.16 ft (0 cm to 5 cm)
ProtocolISO 14443 A and ISO 14443 B, ISO 15693 and ISO18092
Operating Temperature14 °F to 122 °F (-10 °C to 50 °C)
Storage Temperature−4 °F to 176 °F (-20 °C to 80 °C)
Dimensions1.77 in x 0.98 in (45 mm x 25 mm)
