Overview

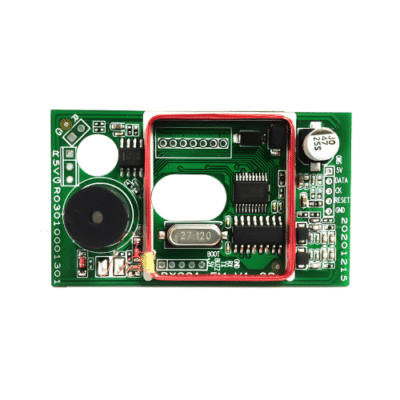

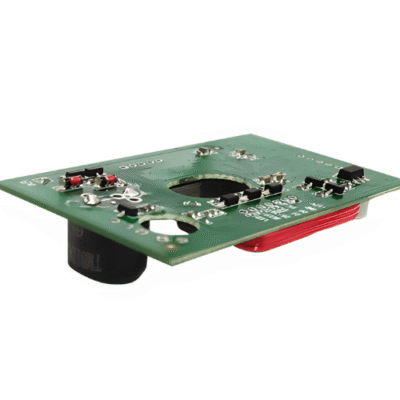

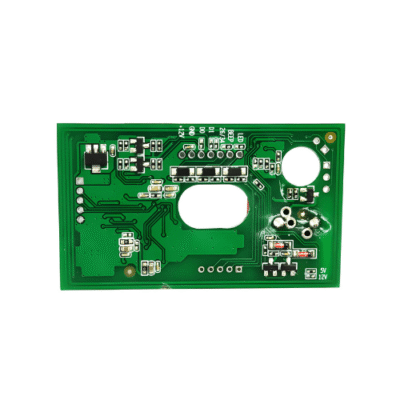

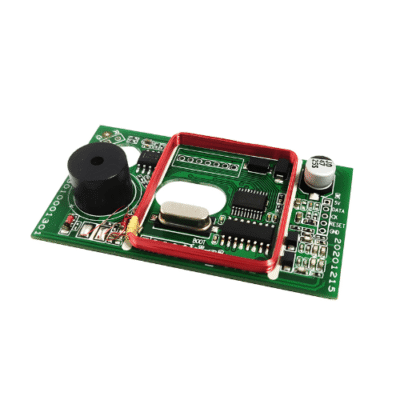

The Inventory Master ID card RFID Reader Module is a non-contact dual-frequency IC and ID card reader module. It adopts an advanced RF receiving circuit and embedded microcontroller design, combined with an efficient decoding algorithm, to complete the data reception of the card. It has the characteristics of accurate card number recognition, no blind spot for card reading, low power consumption, high-cost performance and supports Wiegand output. Can be customized according to customer requirements, widely used in access control systems, school management, community management, membership management, asset management, anti-counterfeiting control and other fields.
Features
- Small size
- Easy to install
- It can recognize IC cards such as S50 or S70 or CPU or NTAG or DESFIRE
- EM4100 TK series and their compatible cards.
Technical Specifications
| Frequency | 125 KHz + 13.56 MHz |
| Protocol | ISO 14443A |
| Card Support | EM 4100 EM 4200 TK 4100 Mifare M1 Ultralight Des fire N tag cards |
| Data Output | WG 26 or WG 34 |
| Power Supply | DC 12 V |
| Work Current | <200 mA |
| Read Distance | 0 ft to 0.0656 ft (0 cm to 2 cm) |
| Communication Interface | Wiegand 34, Wiegand 26 |
| Module Embedding | 2.54 mm pitch pins |
| Operating Distance | ＞20 mm |
| Operating Humidity | 15% RH to 90% RH |
| Cards Type | Mifare Ultralight FM 11RF08 FM 1208（Fudan CPU card） DESFire EV1 NTAG EM 4100 TK 4100 and compatible cards |
| Operating Temperature | 14 °F to 198 °F (-10 °C to + 70 °C) |
| Storage Temperature | -4 °F to 176 °F (-20 °C to + 80 °C) |
| Size | 2.36 in X 1.38 in (60 mm X 35 mm) (tolerance: ±3 mm) |
