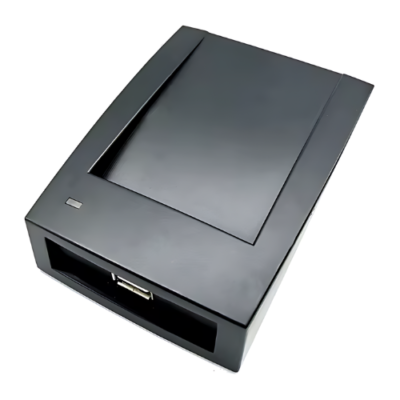

Overview
The Inventory Master RFID Desktop Reader is an HF reader that meets the ISO14443-A protocol. Connect to PC and related devices via USB communication. The driver development package of various platforms is provided at random, and the accompanying demo program implements all the functions of accessing the radio frequency card. It is a necessary front-end processing equipment for developing non-contact card-related application products and systems, and its rich and perfect interface communication function is widely used in smart card management and application systems.
Technical Specifications
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693 |
| Standard | ISO/IEC 14443-A, ISO 18092(optional) |
| Supporting Card | Mifare S50/S70/Ultralight, Mifare Pro, NFC, ntag213, ntag216(optional) etc. |
| Interface | USB plus and play |
| Power Supply | USB 5V |
| Read Distance | 0 to 1.96 in (0 to 5cm) (Depending on label size and antenna technology) |
| Operating Temperature | 14°F to 122°F (-10℃ to 50℃) |
| Housing Material | ABS |
| Dimension | 4.33 in × 3.18 in × 1.02 in (110mm x 81mm x 26mm) |
