Overview

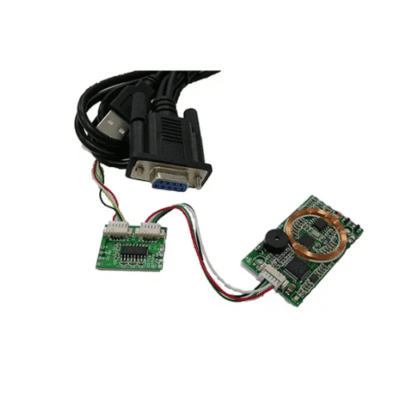

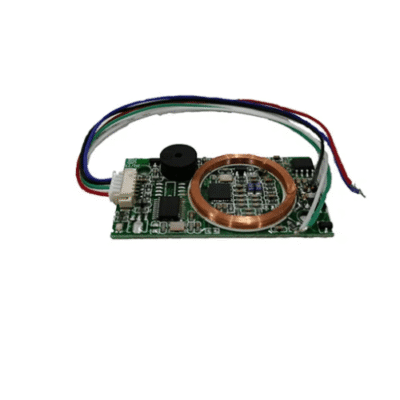

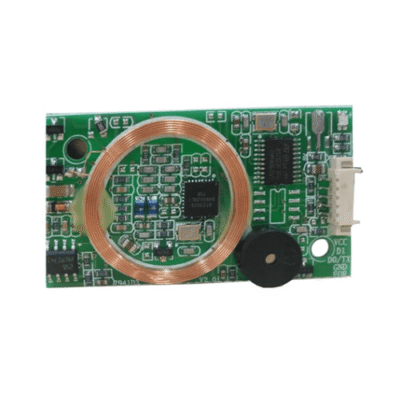

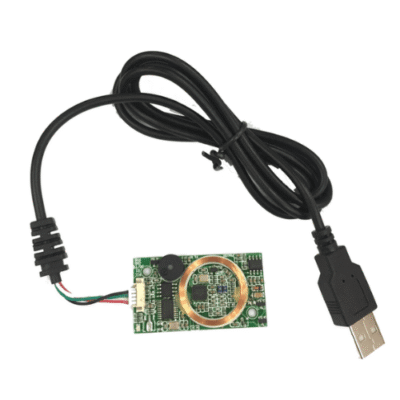

RDM 886 is a 125 KHz and 13.56 MHz read-only module for EM 4100, Mifare S 50 Mifare Desfire. 5 V or 12 V voltage. 1.18 in to 3.14 in Reading Range.
Features
- Dual Frequency Support
- Versatile Card Support
- Multiple Interface Options
- Compact Size
- Extended Reading Distance
- Wide Operating Temperature Range
- Built-in-Antenna
- 1-Year Guarantee
Technical Specifications
| Frequency | 125 KHz and 13.56 MHz |
| Standard | ISO 14443-A |
| Protocol | ISO 14443A |
| Support Card | EM 4100 or EM 4102 and S 50 or Ultralight Card |
| Power Voltage | 5 V or 12 V |
| Reading Range | 1.18 in X 3.14 in (3 cm X 8 cm) |
| Interface | Weigang 26, TTL, USB |
| Temperature | -4 °F to 167 °F (-20 ℃ to 75 ℃) |
| Dimension | 1.85 in X 1.02 in X 0.20 in (47 mm X 26 mm X 5 mm) |
| Size | 12.34 oz (350 g) |
