Overview

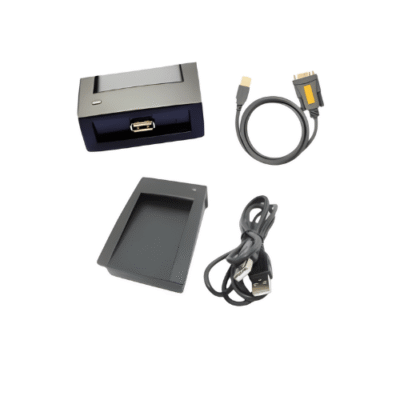

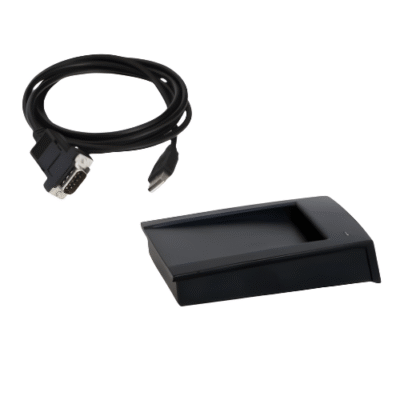

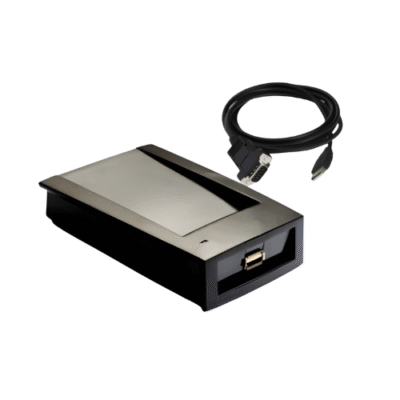

Versatile 125 kHz RFID reader supports dual interface, USB driver-free output, and HID communication.
Features
- Supports multiple platform environments
- Support for dual interface, same to the most common USB keyboards
- USB driver free direct output in Windows
- IC card reader which communicates using HID
Technical Specifications
| Support | T5577/EM4305 , compatible format IC card (64bits, Manchester coding) |
| Operating Frequency | 125 KHz |
| Communication Speed | 106 Kbit / s |
| Baud Rate | 9600 Kbit / s |
| Power Supply | DC 5 V (± 5 %) |
| Current Consumption | Less than 100 MA |
| Effective Operating Distance | 3.94 in (100 mm) |
| Interface | RS232 |
| Expansion | I or O port free |
| Status Indication | 2 LED (one power LED, 1 status indicators), a BUZ |
| Operating Temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Storage Temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
| Maximum Operating Humidity | 0 % to 95 % relative humidity |
| Size | 4.33 in x 3.23 in x 0.94 in (110 mm x 82 mm x 24 mm) |
