Overview

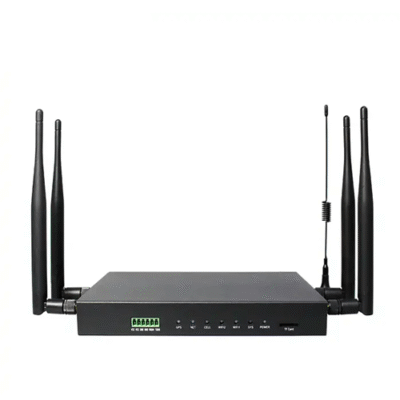

The Inventory Master’s Dual-SIM Multi-Function Cellular Modem with Gigabit Ethernet is a versatile industrial 4G wireless router designed for reliable and high-speed connectivity. Combining Wi-Fi transmission, cellular mobile internet access, local resource sharing, precise GPS positioning, serial port pass-thru transmission, and backend remote management, it offers advanced functionality and efficiency. With enhanced processing performance, extensive interfaces, and faster network speeds, it surpasses standard industrial routers. This modem is ideal for various applications, including car Wi-Fi, video transmission, PLC remote control, smart express cabinets, and video surveillance, delivering dependable and efficient connectivity for both industrial and commercial needs.
Features
- Dual SIM Card Slot
- Provide Auto Fail-Over for High Stability and Connivance
- Dual-Frequency Concurrency, More Efficient Transmission Speed
- Full Gigabit Ethernet Port
- Hardware Auto-Recovery
- Good Heat Dissipation with Metal Body
- Industrial Grade Design
- Cloud Access Smart Management Platform
Technical Specifications
| CPU | MTK 7621 |
| Flash | 128 Mbit |
| RAM | DDR 2 1 Gbit |
| WAN | 1 x 10 M, 100 M, 1000 M Ethernet Port, Auto MDI, MDIX, Built-in 1.5 KV Electromagnetic Isolation Protection |
| LAN | 4 x 10 M, 100 M, 1000 M Ethernet Port, Auto MDI, MDIX, Built-in 1.5 KV Electromagnetic Isolation Protection |
| SIM Card | 2 x Push-Push SIM card Slot |
| USB | 1 x USB Port |
| UART | 1 x RS 232 or RS 485 Serial Communication |
| Power | 1 x Standard DC Connector, Built-in Power Reverse Protection |
| Antenna | 1 x 4G Antenna 2 x 2.4 GHz Wi-Fi Antenna 2 x 5 GHz Wi-Fi Antenna 1 x GPS Antenna (optional) |
| LED Indicators | 1 x SYS System Status Indicator 4 x LAN Ethernet Status indicator 1 x WAN Ethernet Status Indicator 2 x WIFI Status Indicator 1 x NET Internet Indicator 1 x GPS Status Indicator |
| Reset | 1 x Pinhole Reset Button |
| Input Power | DC 12 V, 1.5 A |
| Power Range | DC 9 V to 30 V |
| Power Consumption | <2 A (12 V) |
| Enclosure | Metal Enclosure, Industrial Protection Grade IP 30 The enclosure and the system are safely isolated and are widely used in automotive and specific industrial applications |
| Dimensions | 7.87 in x 5.55 in x 1.10 in (200 mm x 141 mm x 28 mm) |
| Weight | 2.03 lb (920 g) |
