Overview

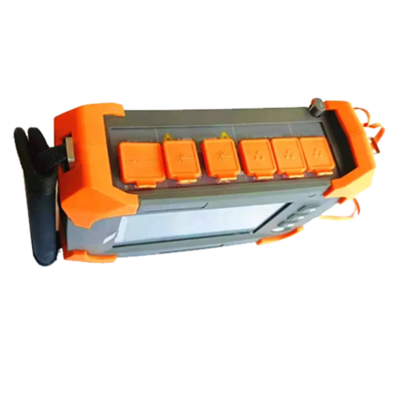

The Inventory Master durable and smart ethernet network analyzer is a handheld 10M, 100M, or 1000M gigabit Ethernet tester, used for the Ethernet installation, operation and maintenance services. It is designed as a small and portable device that provides packet capture, network monitoring, network performance testing, data generation, test leads, and error test functions in an organic whole unit. It is widely used in network layer 1 2, or 3 BER test and RFC to 2544 test. It helps maintenance people to quickly locate faults and analysis network
Features
- Electrical port and optical ports
- Smart and durable, field application ready
- 5 inch LCD color touch screen, smart navigation menu
- Results can be shown graphically and numerically
- RFC2544 auto test, quickly find the fault
- Full Y.1564 test
- LED indicator light, on-screen display and ICON
- Large capacity memory to save settings and test results
- Embedded software to easy upgrade
Technical Specifications
| Type | Other |
| Use | Fiber Network Testing |
| Product name | 1G Ethernet Tester |
| Screen | 5 in (12.7 cm) touch screen |
| Function | L1, L2, L3 BER Test |
| Power supply | 4 hours continuous operation |
| Type | Tester and tools |
| Testing port | Dual-RJ45 port:10, 100, or 1000 BASE-T Dual-SFP port: 1000BASE-SX, LX, or ZX |
| Standard | IEEE 802.3, RFC1242, RFC2544, Y.1564 |
| Connector or interface | RJ-45 or USB |
| LED indicator | POWER, PORT1 LINK or ACT, PORT2 LINK or ACT, ALARM |
| Display | 800×480 color LCD touch screen |
| Battery | Lithium battery / AC adapter |
| Power supply | 4 hours continuous operation |
| Relative humidity | 0 to 95% (non-condensing) |
| Operating temperature | 32 ⁰F to 122 ⁰F (0 ℃ to 50 ℃) |
| Dimension | 9.17 cm x 4.33 in x 2.52 in (23.3 cm × 11 cm × 6.4 cm) |
| Weight | 28.22 oz (800 g) |
