Technical Specifications

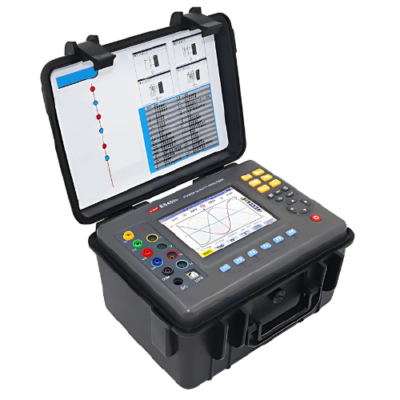

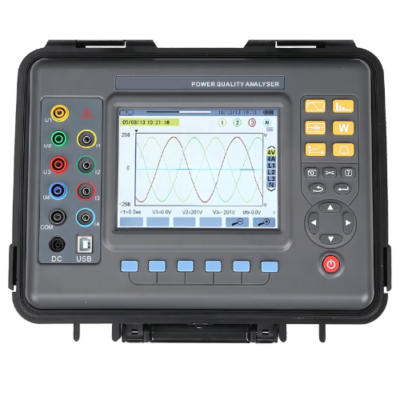

| Type | Earth Voltage & Resistance Tester |
| Measuring Range | 0.01Ω to 1200Ω (Resistance); 0 V to 600V (Test Voltage); 0A to 6000A (Current) |
| Accuracy | 0.01 |
| Display Type | LCD Display (Color Screen) |
| Display Resolution | 640 x 480 dots |
| Battery | Rechargeable Lithium-ion, 9.6V, 8000 mAh |
| Battery Life | ≥10 hours continuous use |
| Charger | 12.6V @ 3A, 90 V AC to 265VAC, 50 Hz to 60 Hz |
| Voltage Test Range | 1.0V to 2000V (Phase-to-Phase), 1.0V to 1000V (Phase-to-Neutral) |
| Current Test Range | 10mA to 6000A (with different clamps) |
| Frequency | 40Hz to 70Hz |
| Harmonics | 0.0% to 100% THD |
| Voltage Unbalance | <10% |
| Measurement Mode | True RMS |
| Recordable Data | 300 days (20 parameters, recorded every 5 seconds) |
| Communication | USB |
| Safety Certification | IEC 61010-1000V CAT III / 600V CAT IV, IEC 61010-031, IEC 61326 |
| Insulation | ≥10MΩ between wiring and shell |
| Current Clamps | FR008 (0.31 inches x 0.59 inches (0.8 cm x 1.5 cm), FR020 (0.79 inches x 0.79 inches (2.0 cm x 2.0 cm),FR050 1.97 inches x 1.97 inches (5.0 cm x 5.0 cm), FR300R (11.81 inches Coil (30.0 cm Coil) |
| Voltage Test Wire Length | 9.84 ft (3 m) |
| Current Sensor Wire Length | 6.56 ft (2 m) |
| Weight with Packaging | 23.81 lbs (10.8 kg) |
| Operating Temperature | -4°F to 104°F (-20°C to +40°C) |
| Storage Temperature | 14°F to 140°F (-10°C to +60°C) |
| Dimensions | 10.91 in x 8.96 in x 6.02 in (27.72 cm x 22.75 cm x 15.3 cm) |
| Weight | 5.51 lb (2.5 kg) (Host), 0.37 to 1.03 lb(168 g to 463 g) (Clamps) |
