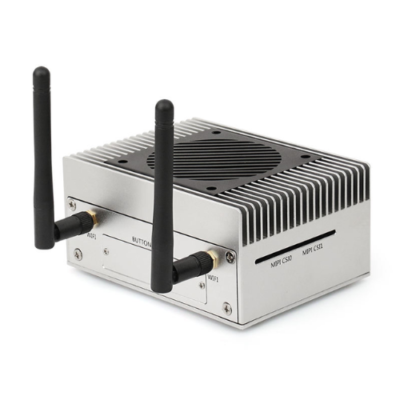

Edge AI Computing Intelligent Box with High-Performance Processor – The Inventory Master

Compact edge AI computing box delivering up to 157 TOPS, multi-core CPU, LPDDR5 memory, 4K/8K support, and efficient real-time AI processing.

SKU: TIMDE-376 Category:

Technical Specifications

SpecificationType AType BType CType D
AI Performance67 TOPS34 TOPS157 TOPS117 TOPS
GPU1024-core NVIDIA Ampere GPU with 32 Tensor Cores512-core NVIDIA Ampere GPU with 16 Tensor Cores1024-core NVIDIA Ampere GPU with 32 Tensor Cores1024-core NVIDIA Ampere GPU with 32 Tensor Cores
GPU Max Frequency1.02 GHz1.17 GHz1.02 GHz1.02 GHz
CPU6-core Arm Cortex-A78AE v8.2 64-bit6-core Arm Cortex-A78AE v8.2 64-bit8-core Arm Cortex-A78AE v8.2 64-bit8-core Arm Cortex-A78AE v8.2 64-bit
CPU Cache1.5 MB L2 + 4 MB L31.5 MB L2 + 4 MB L32 MB L2 + 4 MB L32 MB L2 + 4 MB L3
CPU Max Frequency1.7 GHz2.0 GHz2.0 GHz2.0 GHz
DL Accelerator2 × NVDLA v21 × NVDLA v21 × NVDLA v2
Memory8 GB LPDDR5 (128-bit, 102 GB/s)4 GB LPDDR5 (64-bit, 51 GB/s)16 GB LPDDR5 (128-bit, 102.4 GB/s)8 GB LPDDR5 (128-bit, 102.4 GB/s)
Storage256 GB SSD256 GB SSD256 GB SSD256 GB SSD
Video Encode1080p30 (CPU-based)4K60 / 4K30 / 1080p60 / 1080p30 (H.265)4K60 / 4K30 / 1080p60 / 1080p30 (H.265)4K60 / 4K30 / 1080p60 / 1080p30 (H.265)
Video Decode4K60 / 4K30 / 1080p60 / 1080p30 (H.265)8K30 / 4K60 / 1080p60 / 1080p30 (H.265)8K30 / 4K60 / 1080p60 / 1080p30 (H.265)8K30 / 4K60 / 1080p60 / 1080p30 (H.265)
Camera Interface2 × MIPI CSI-2 (22-pin)2 × MIPI CSI-2 (22-pin)2 × MIPI CSI-2 (22-pin)2 × MIPI CSI-2 (22-pin)
PCIe SlotsM.2 Key E, 2 × M.2 Key MM.2 Key E, 2 × M.2 Key MM.2 Key E, 2 × M.2 Key MM.2 Key E, 2 × M.2 Key M
DisplayHDMI connectorHDMI connectorHDMI connectorHDMI connector
USB Ports4 × USB 3.2, 1 × USB Type-C4 × USB 3.2, 1 × USB Type-C4 × USB 3.2, 1 × USB Type-C4 × USB 3.2, 1 × USB Type-C
Networking1 × GbE port1 × GbE port1 × GbE port1 × GbE port
Other I/O40-pin header (UART, SPI, I2S, I2C, GPIO), power button, DC jackSameSameSame
Power Consumption7 – 25 W7 – 25 W10 – 40 W10 – 40 W
Dimensions (W × D × H)4.55 × 3.35 × 2.24 in4.55 × 3.35 × 2.24 in4.55 × 3.35 × 2.24 in4.55 × 3.35 × 2.24 in
