Technical Specifications
| Structure | Safety |
| Application | General |
| Power | Electric |
| Customized Support | OEM, ODM, OBM |
| Temperature of Media | High temperature, low temperature, medium temperature |
| Media | Water |

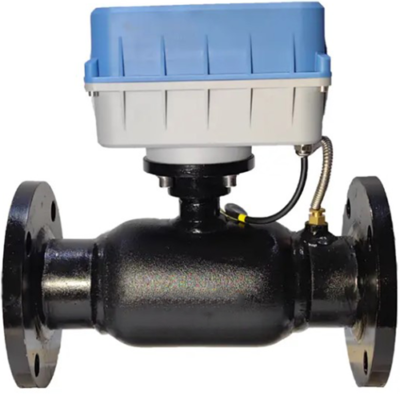

| Type | Ball valve |
| Usage | Automation of valve |
| Material | Carbon steel |
| Valve Core | 304 Stainless steels |
| Working Medium | Water oil steam |
| Working Pressure | PN16 PN25 |
| Voltage | DC 3.6 V, DC 24 V |
| Battery Capacity | 57000 mAh (Customizable) |
| Standby Power | 50 µA |
| Switching Power | 1 W |
| Torque | 100 Nm |
| Communication | M-BUS, NB-IOT, LORA, 4G, 0 V to 10 V, 4 mAH to 20 mAH |
| Operation Time | 2 min (Customizable) |
| Drive Mode | Electric |
| Protection Grade | IP67, IP68 |
| Actual Shell Material | Nylon upper shell aluminum lower shell |
| Body Material | Carbon steel (flange connection) |
| Working Pressure | PN16, PN25 |
| Medium | Water, hot water, steam |
| Working Temperature | -4 °F to 302 °F (-20 °C to 150 °C) |
| Opening | 0° to 90° |
| Size | ½ Into 8 in (1.27 cm to 20.32 cm), DN15 to DN200 (customized according to needs) |
