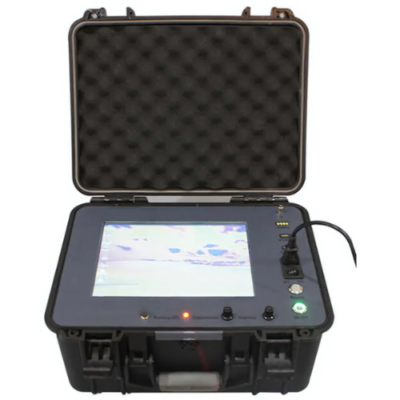

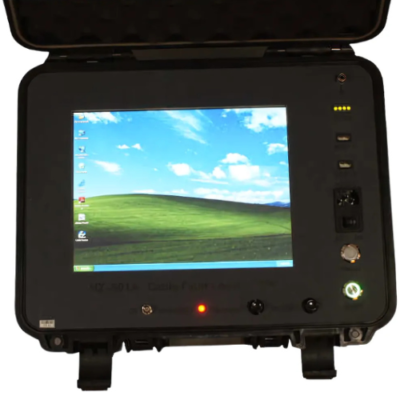

Features
- Industrial Touchscreen Control
- Multiple Testing Methods
- High Sampling Resolution
- Continuous Data Acquisition
- Automatic Report Generation
Technical Specifications
| Test Methods | Low-voltage Pulse, Flashover Method, Audio Method, Acousto-magnetic Synchronization, Valley, Peak, Electromagnetic Induction |
| Display Control | Flash Tester: 12-inch Industrial-grade computer, built-in 12 V /10 Ah DC Power, continuous 10 hours operation |
| Test Range | Test Distance: 37.3 miles (60 km), Detection Depth: 6.6 ft to 16.4 ft (2 m to 5 m) |
| Measurement Accuracy | Rough Measurement Error: ± 32.8 feet (10 m) or ±1%; Fine Measurement Error: ± 7.9 inches (0.2 m) |
| Sampling Frequency | 100 MHz, Minimum Resolution: 1.6 feet |
| Sampling Mode | Fully Automatic Continuous Sampling, never misses a discharge waveform |
| Low Voltage Pulse | Width: 0.1 μS to 2 μS; Amplitude: 100 Vpp |
| Output Power | Path Power: 100 W; Impact Power: 0 to 400 W |
| Impact High Voltage | 0 kV to 35 kV |
| Short Circuit Current | 0 mA to 320 mA |
| Burn Through Power | 0 J to 1225 J |
| Pulse Amplitude | 100 Vpp |
| Power Supply | Built-in 12 V / 10 Ah DC power (4 hours continuous operation) or external AC 220V 50Hz |
| Measuring Distance | Smax: 37.3 miles; Smin: 49.2 feet |
| Operating Temperature | -13 °F to 149 °F (-25 °C to 65 °C) |
| Dimension | 16.9 in x 14.2 in x 9.1 in (43 cm x 36 cm x 23 cm) |
| Weight | 17.6 lbs (8 kg) |
