Overview

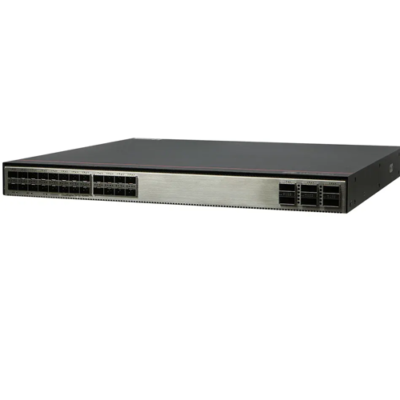

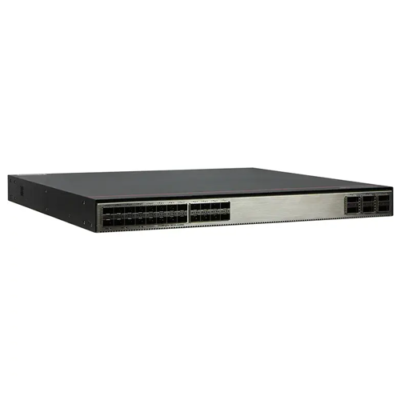

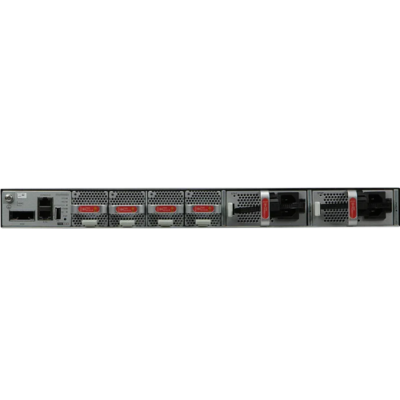

The Inventory Master Enterprise Wi-Fi Switch with 24×10 GE Ports & 1K AP Management provide native AC capabilities and can manage 1 K APs. They provide a free mobility function to ensure consistent user experience and are Virtual Extensible LAN (VXLAN) capable of implementing network virtualization. It is provide built-in security probes and support abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception. It is ideal for enterprise campuses, carriers, higher education institutions, and governments.
Technical Specifications
| Description | S6730-H24X6C (24 x 10 GE SFP + ports, 6 x 40 GE QSFP 28 ports, optional license for upgrade to 6 x 100 GE QSFP 28, without power module). |
| Fixed ports | 24 x 10 Gig SFP +, 6 x 40 or 100 Gig QSFP 28 |
| Input voltage | AC Power Rated AC voltage: 100 V to 240 V AC; 50 Hz or 60 Hz Max. AC voltage: 90 V to 290 V AC; 45 Hz to 65 Hz DC Power Rated DC voltage: –48 V to 60 V Max. DC voltage -38.4 V DC to 72 V DC |
| Input current | AC 600 W Max 8 A DC 1000 W Max 30 A |
| Maximum power consumption | 231 W |
| Minimum power consumption | 97 W |
| Storage temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Operating altitude | 3.10 mi (5000 m) |
| Noise (sound pressure at normal temperature | 65 dB (A) |
| Surge protection specification | AC power interface: differential mode: ± 6 kV: common mode: ± 6 kV DC power interface: differential mode: ± 2 kV: common mode: ± 4 kV |
| Dimensions | 17.40 in x 16.52 in x 1.71 in (442 mm x 420 mm x 43.6 mm) |
