Technical Specifications
| Frequency | 865MHz to 865MHz(EU Standard), 902MHz to 928MHz (US standard) |
| Protocol | ISO18000 to 6C(EPC GEN2) |
| Work Mode | Answer Mode, Real to time to inventory, Trigger Mode |

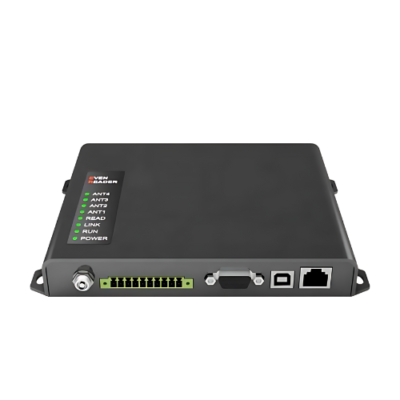

| Type | 4 antenna UHF RFID reader |
| Chip | High performance chip |
| Technical Support | Yes |
| Application | Warehouse Management |
| Max Inventory Speed | 200 Pcs per s |
| Reading Range | 3.2ft to 49.2 ft (1 m to 15 m) (depends on antenna gain) |
| Tag Buffer Size | 600 pcs at max. 128 bits EPC or 180 pcs at max.496 bits EPC |
| Inventory | Support EPC and TID inventory |
| Antenna Port | 4 RP TNC Female |
| Device Connectivity | RS232 OR RS485 OR USB OR RJ45 OR POE OR WIFI (optional) |
| General Purpose I or O | 2 optpcoupler input, 2 relay output |
| Support | RSSI |
| RF Power | 33dbm (adjustable) |
| Power Supply | 12V |
| Current Dissipation | 0.5 to 1.2A |
| Working Humidity | < 95 % RH 77 °F (+ 25 °C) Non-condensing |
| Operating Temperature | 14 °F to 140 °F (-10 ºC to +60℃) |
| Storage Temperature | -4 °F to 167 °F (-20℃ to +75℃) |
| Reader Size | 7.2 in x 6.3 in × 1.0 in (184 mm x 161.7 mm x26 mm) |
| Net Weight | 21.1 oz (600 g) (0.6 kg) |
