Overview

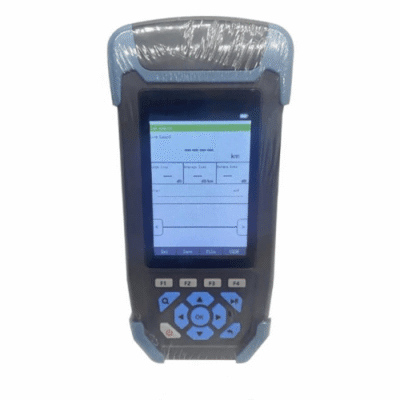

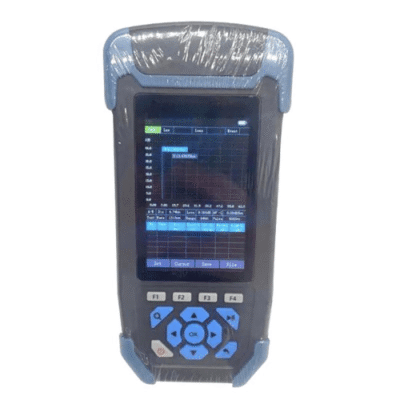

Ethernet 24 dB Dynamic Range & 3.5 in Color LCD for Fiber Breakpoint Detection is applied to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key. The tester is compact with a 3.5 in (8.89 cm) colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combines 8 functions with highly integrated OTDR, Event maps, Stable Light source, Optical power meter, Visual fault locator, cable sequence proofreading, cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector, 600 internal storage, TF card, USB data storage and built-in 4000 mAh lithium battery, USB charging. It is a good choice for long term field work.
Features
- 3 Event Map
- Optical Power Meter: -50 dBm to 26 dBm
- Optical Light Source: 1310nm or 1550 nm, greater than -5 dBm
- Visual Fault Locator: greater than 10 mW

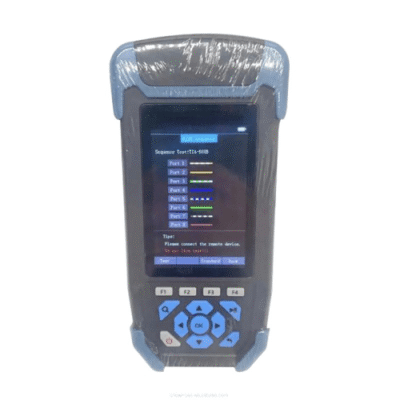

- RJ45 Ethernet Cable Sequence
- RJ45 Ethernet Cable Distance
- RJ45 Ethernet Cable Tracker
- LED Light
Technical Specifications
| Wavelength | 1310 nm or 1550 nm ± 20 nm |
| Fiber Type | G.652 SM Fiber |
| Dynamic Range3 dB | 24dB or 22dB |
| Pulse Width | 3 us to 10 us |
| Loss Accuracy | 0.2 dB |
| Sampling Points | 16 k to 128 k |
| Reflection Accuracy | 3 dB |
| Data Storage | Internal: greater than 600, External: TF Card |
| Laser Safety Level | Class II level |
| File Format | SOR Standard File Format |
| Connector | FC or UPC (Interchangeable SC, ST) |
| Optical Light Source | |
| LD Type | FP-LD |
| Output Wavelength | 1550 nm ±20 nm, 1310 nm or 1550 nm ±20 nm |
| Output Power | Greater than 5 dBm |
| Connector | FC or UPC (Interchangeable SC, ST) |
| Other Parameters | |
| Display | 3.5 in (8.89 cm) Color LCD |
| Data Interface | Micro USB |
| External Storage | TF Card |
| Power Supply | Polymer Li-battery: 3.7 V, 4000 mAh, Power Adapter: 5 V DC, 2A |
| Battery Life | Standby 20 hrs, Measuring Time 12 hrs |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Relative Humidity | 0% to 95% non-condensing |
| Dimension | 6.81 in x 3.22 in x 1.45 in (173 mm x 82 mm x 37 mm) |
| Weight | 0.77 lb (350 g) |
