Overview

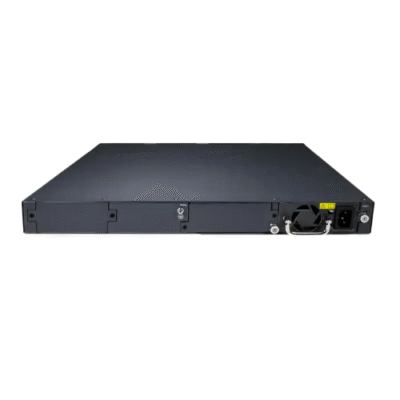

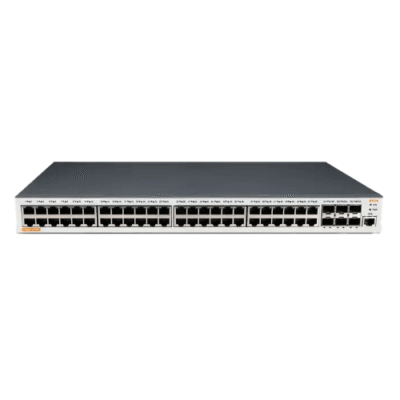

The Inventory Master Ethernet Aggregation Switch with 48 GE Ports & 216 Gbps Capacity. They support Layer 3 functions and can be managed through the CLI command line or WEB management for easy management. They also have flexible IPv6 functions and support MSTP, ERPS, VRRP, ISSU for high reliability. These products are good choices for next-generation IP metropolitan area networks, large campus networks, and enterprise networks.
Features
- 216 Gbps Switching Capacity and 162 Mpps Forwarding Rate.
- 1+1 Hot-Swap Power Supply and 2 Smart Fans.
- High Management by Support Telnet, SSH, etc.
- Perfect Security by Support IEEE 802.1x, Radius and BDTacacs+, etc.
- Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for Reliability.
Technical Specifications
| Ports | 48 x 1G RJ45 | 6 x 10G SFP |
| Power Supply | AC 220 V power supply supporting dual power |
| Packet Buffer | 2 MB |
| Forwarding Rate | 162 Mpps |
| Jumbo Frame | 9 K |
| Input Voltage | 100 V to 240 V AC, 50 Hz ±10% |
| Flash Memory | 16 MB |
| MTBF | >200000 Hours |
| Switching Capacity | 216 Gbps |
| VLAN IDS | 4 K |
| MAC Address | 32 K |
| Dram | 512 MB |
| Power Consumption | 75 W |
| Fan Number | 2 |
| Mounting Methods | Rackmount |
| Rack Space | 1 U |
| Dimensions | 1.73 in x 17.32 in x 13.77 in (44 mm x 440 mm x 350 mm) |
