Overview

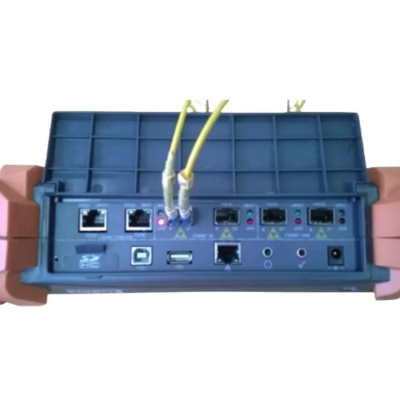

The Inventory Master ethernet professional gigabit network and fiber analyzer- provides a complete test for next generation Ethernet solution. There are many different test modules, which can help to verify the performance of their Ethernet. It has two 10 Mb/s, 100 Mb/s, or 1000 Mb/s electrical interfaces, two 100M or 1000M SFP optical interfaces and two 10Gbps SFP+. It can generate and analyze the test traffic streams and provide the result. XGT-200 provides install, maintain services and activate new profession service. It can provide a variety of test functions, which can help user to control and know the quality of Ethernet. We believe that the product will be the comprehensive and simple Ethernet and advanced IP connectivity test suites for the field technicians.
Features
- Smart and durable, field application ready
- HD color touch screen, sun readable
- User friendly user interface
- PC remote control
- Test profiles and data management, USB or FTP transfer
- Comprehensive testing for Ethernet testing
- Lithium battery up to 4 hours continuous testing
Technical Specifications
| Type | Testers &Tools | ||||
| Screen | 7 Inch HD Color Touch Screen | ||||
| Data Storage | 8 GB | ||||
| Interface | USB 2.0 Port, RJ-45 LAN | ||||
| No of Fiber | 1 | ||||
| Use | FTTX | ||||
| Optical Interface | Two GigE Ports | ||||
| Wavelength(nm) | 850 | 1310 | 1550 | ||
| Laser Connector or Transceivers Type | VCSEL/LC/SFP | FP/LC/SFP | DFB/LC/SFP | ||
| Electrical Interfaces | Two Ports: 10 BaseT or 100 BaseT Half or Full Duplex and 1000BaseT Full Duplex, Choose Straight or Crossover Cables | ||||
| Connector | RJ-45 | RJ-45 | RJ-45 | ||
| SFP+ Optical Interface(10G) | Two 10 GigE Ports | ||||
| Wavelength(nm) | 850 | 1310 | 1550 | ||
| Laser/Connector/Transceivers Type | VCSEL/LC/SFP+ | DFB/LC/SFP+ | CML/LC/SFP+ | ||
| Testing Items | |||||
| Y.1564 | Capability to Perform the Service Configuration Test and Service Performance Test as Per ITU-T Y.1564. Tests Can Be Performed to Loopback or Dual Test Set Mode for Bidirectional Results | ||||
| RFC2544 | Throughput Back to Back Frame Loss and Latency Measurement as Per RFC2544 Frame size RFC-Defined Sizes User Configurable 1to7 | ||||
| BERT Bit Error Test | Up to Layer 4 Supported with or Without VLAN Q-in-Q | ||||
| Through Mode | Sectionalize Traffic Between a Service Provider’s Network and Customer Premises Equipment | ||||
| Service Disruption Time (SDT) | Disruption Time Statistics Include Shortest Longest Last Average Total and Pass/Fail Thresholds | ||||
| Multi Stream Generation | Capability to Transmit and Monitor Up to 16 Streams of Ethernet and IP Traffic | ||||
| Traffic Generation and Monitoring | Capability to Generate and Monitor Traffic of Ethernet and IP; Traffic Shaping Can Be Based on Those Statistics: Throughput Frame Loss Packet Jitter Frame Sorting Latency Frame Size Traffic Type and Traffic Monitoring | ||||
| VLAN Stacking | Capability to Generate Streams with Up to Two Layers of VLAN (Including IEEE802.1ad Q-in-Q Tagged VLAN) and to Filter Received Traffic by VLAN ID or VLAN Priority at Any of the Stacked VLAN Layers | ||||
| IPv6 Test | Including BERT RFC2544 Traffic Generation and Monitoring Background Traffic Smart Loopback Ping and Trace Route | ||||
| Dimension | 11.1 in x 7.32 in x 2.95 in (28.2 cm x 18.6 cm x 7.5 cm) | ||||
| Weight | 6.39 lb (2.9 kg) | ||||
